Product Summary
The fh12s-30s-0.5sh is a 0.5mm and 1mm Pitch Connector For FPC/FFC. The applications of the fh12s-30s-0.5sh include Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device.
Parametrics
fh12s-30s-0.5sh absolute maximum ratings: (1)Current rating: 0.4 ADC; (2)Voltage rating: 50 VAC; (3)Applicable FPC: t=0.3±0.05; (4)Insulation resistance: 100 VDC; (5)Withstanding voltage: 150 VAC/1 minute; (6)Contact resistance: 1 mA; (7)Durability: 20 cycles; (8)Vibration Frequency: 10 to 55 Hz.
Features
fh12s-30s-0.5sh features: (1)Ease of Use and Space Savings; (2)Strengthened Flip-lock Actuator; (3)Supports Thin FPC (0.18mm); (4)Hirose Ensures Reliability; (5)Prevention of Solder Bridge; (6)Three different assembly types.

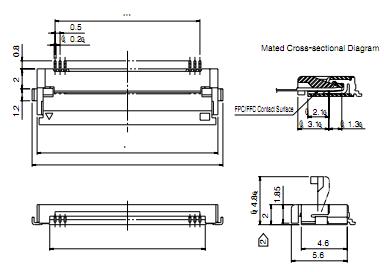

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

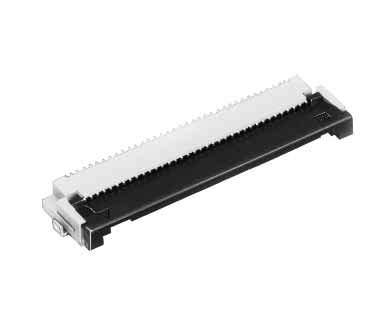

 FH12S-30S-0.5SH(55) |
Hirose Connector |
FFC / FPC Connectors 0.5MM 30 POS RA SMT FLIP LK ACT GLD PLTD |
Data Sheet |
|
|
||||||||||||||
