Product Summary
The hc00ag is a quad 2-Input NAND Gate. The device input are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.
Parametrics
hc00ag absolute maximum ratings: (1)VCC DC Supply Voltage (Referenced to GND): -0.5 to +7.0 V; (2)VIN DC Input Voltage (Referenced to GND): -1.5 to VCC +1.5 V; (3)VOUT DC Output Voltage (Referenced to GND): -0.5 to VCC +0.5 V; (4)IIN DC Input Current, per Pin: ±20 mA; (5)IOUT DC Output Current, per Pin: ±25 mA; (6)ICC DC Supply Current, VCC and GND Pins: ±50 mA; (7)PD Power Dissipation in Still Air, Plastic DIP SOIC Package: 750 mW; (8)Tstg Storage Temperature: -65 to +150 °C; (9)TL Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package): 260 °C.
Features
hc00ag features: (1)Outputs Directly Interface to CMOS, NMOS, and TTL; (2)Operating Voltage Range: 2.0 to 6.0 V; (3)Low Input Current: 1.0 μA; (4)High Noise Immunity Characteristic of CMOS Devices .

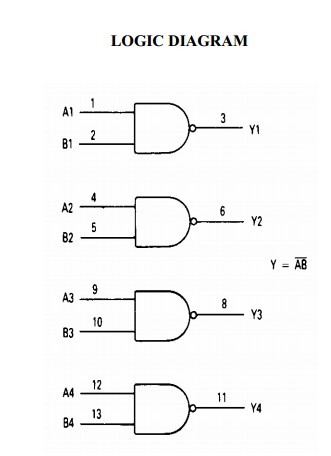

Diagrams
