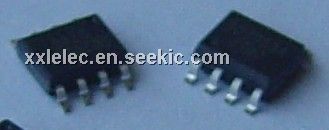

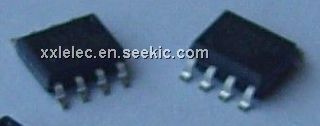

HCS362-I/SN

HCS362-I/SN, code hopping encoder, 6.6 V, 20 mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: HCS362-I/SN

Brand:: Microchip Technology - Microchip | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:HCS362-I/SN
US $2.30 - 2.50
Quantity:

piece

Product Summary

The hcs362-i/sn is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. The hcs362-i/sn utilizes the KEELOQ code hopping technology, which incorporates high security, a small package outline and low cost, to make the hcs362-i/sn a perfect solution for unidirectional remote keyless entry systems and access control systems. The crypt key, serial number and configuration data are stored in an EEPROM array which is not accessible via any external connection. The EEPROM data is programmable but read protected. The data can be verified only after an automatic erase and programming operation. This protects against attempts to gain access to keys or manipulate synchronization values. The hcs362-i/sn provides an easy to use serial interface for programming the necessary keys, system parameters and configuration data. Applications are (1)Automotive RKE systems; (2)Automotive alarm systems; (3)Automotive immobilizers; (4)Gate and garage door openers; (5)Identity tokens; (6)Burglar alarm systems.

Parametrics

hcs362-i/sn absolute maximum ratings: (1)VDD Supply voltage: -0.3 to 6.6 V; (2)VIN Input voltage: -0.3 to VDD + 0.3 V; (3)VOUT Output voltage: -0.3 to VDD + 0.3 V; (4)IOUT Max output current: 20 mA; (5)TSTG Storage temperature: -55 to +125 °C; (6)TLSOL Lead soldering temperature: 300 °C; (7)VESD ESD rating: 4,000 V.

Features

hcs362-i/sn features: (1)Programmable 28/32-bit serial number; (2)Two programmable 64-bit encryption keys; (3)Programmable 60-bit seed; (4)Each transmission is unique; (5)69-bit transmission code length; (6)32-bit hopping code; (7)37-bit fixed code (28/32-bit serial number, 4/0-bit function code, 1-bit status, 2-bit CRC/time, 2-bit queue); (8)Encryption keys are read protected.
