The hd6412240fa10 is a microcomputer (MCU: microcomputer unit), built around the H8S/2000 CPU, employing Renesas Technology proprietary architecture, and equipped with peripheral functions on-chip. The hd6412240fa10 CPU has an internal 32-bit architecture, is provided with sixteen 16-bit general registers and a concise, optimized instruction set designed for high-speed operation, and can address a 16-Mbyte linear address space.
Parametrics
hd6412240fa10 absolute maximum ratings: (1)Power supply voltage VCC –0.3 to +7.0 V; (2)Programming voltage VPP –0.3 to +13.5 V; (3)Input voltage (except port 4) Vin –0.3 to VCC +0.3 V; (4)Input voltage (port 4) Vin –0.3 to AVCC +0.3 V; (5)Reference voltage Vref –0.3 to AVCC +0.3 V; (6)Analog power supply voltage AVCC –0.3 to +7.0 V; (7)Analog input voltage VAN –0.3 to AVCC +0.3 V; (8)Operating temperature Topr Regular specifications: –20 to +75℃; Wide-range specifications: –40 to +85℃; (9)Storage temperature T –55 to +125℃.
Features
hd6412240fa10 features: (1)Address space divided into 8 areas, with bus specifications settable independently for each area; (2)Chip select output possible for each area; (3)Choice of 8-bit or 16-bit access space for each area (CS0 to CS3); (4)2-state or 3-state access space can be designated for each area; (5)Burst ROM directly connectable; (6)External bus release function.

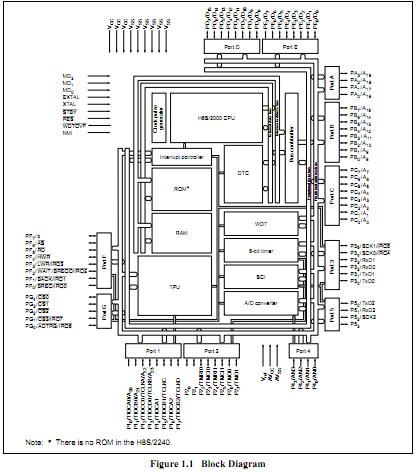

Diagrams
