Product Summary
The HD6412240FA20 is a series of microcomputer (MCU: microcomputer unit), built around the H8S/2000 CPU, employing Renesas Technology proprietary architecture, and equipped with peripheral functions on-chip. The HD6412240FA20 has an internal 32-bit architecture, is provided with sixteen 16-bit general registers and a concise.
Parametrics
HD6412240FA20 absolute maximum ratings: (1) Power supply voltage Vcc: -0.3 to +7V; (2) Programming voltage Vpp: -0.3 to +13.5V; (3) Input voltage (except port 4) Vin: -0.3 to Vcc +0.3V; (4) Input voltage (port 4) Vin: -0.3 to AVcc +0.3V; (5) Reference voltage Vref: -0.3 to AVcc +0.3V; (6) Analog power supply voltage AVcc: -0.3 to +7V; (7) Analog input voltage VAN: -0.3 to AVcc +0.3V; (8) Operating temperature: -20 to +75°C, -40 to +85°C; (9) Storage temperature Tstg: -55 to +125°C.
Features
HD6412240FA20 features: (1) Upward-compatible with H8/300 and H8/300H CPUs; (2) Sixty-five basic instructions; (3) Eight addressing modes; (4) 16-Mbyte address space; (5) High-speed operation; (6) Two CPU operating modes.

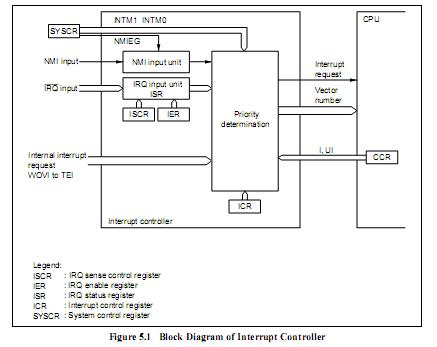

Diagrams
