Product Summary

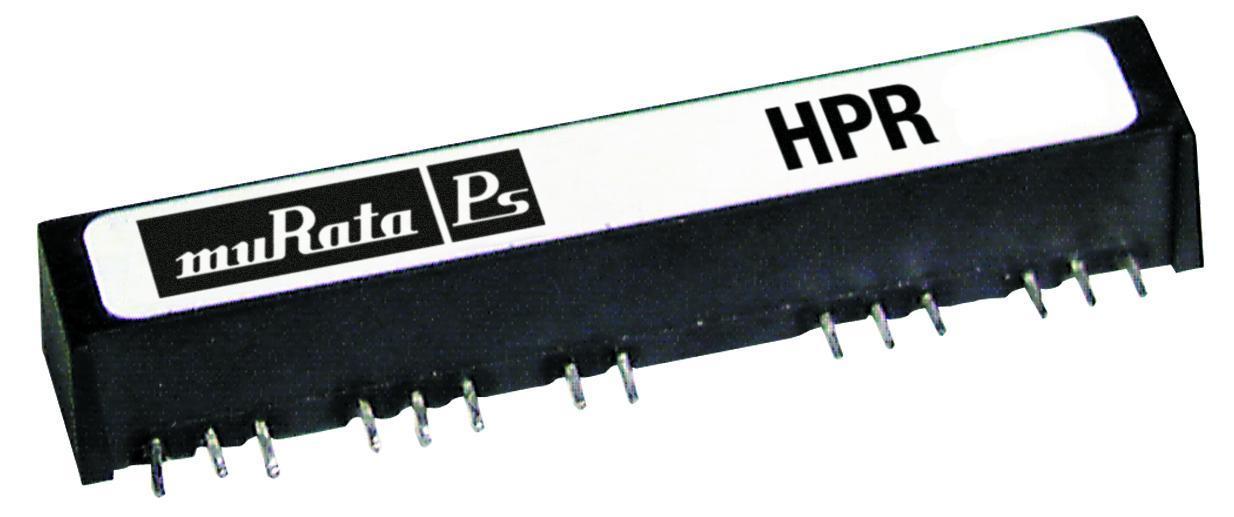

The hpr203c is a 3.0 watt miniature sip dc/dc converter. The hpr203c is designed for multiple channel applications that require small size and could benefit from a complete one-package solution. The hpr203c Series offers four isolated channels of output power in a footprint less than the size of many singular devices. This unregulated series of the hpr203c provides three watts of total output power. Each isolated channel can supply up to 750mW.

Parametrics

hpr203c absolute maximum ratings: (1)RATED OUTPUT VOLTAGE: 5 VDC; (2)RATED OUTPUT CURRENT: ±73 mA; (3)INPUT CURRENT: 70 mA; (4)REFLECTED RIPPLE CURRENT: 35 mAp-p; (5)EFFICIENCY: 74 %.

Features

hpr203c features: (1)ROHS COMPLIANT; (2)FOUR CHANNELS OF ISOLATED POWER; (3)HIGH OUTPUT POWER DENSITY: ＞ 9. 4 WATTS/INCH3; (4)EXTENDED TEMPERATURE RANGE: -25 to +85 ℃; (5)HIGH EFFICIENCY: TO 84 %; (6)LOW COST; (7)HIGH ISOLATION VOLTAGE: 750 V CONTINUOUS; (8)INPUT-TO-OUTPUT AND CHANNEL-TO-CHANNEL; (9)SINGLE IN-LINE PACKAGE (SIP); (10)INTERNAL INPUT AND OUTPUT FILTERING; (11)NON-CONDUCTIVE CASE.

Diagrams

hpr203c block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HPR203C
HPR203C
Murata Power Solutions
DC/DC Converters 3W 5V to +/-5.2V
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HPR203C
HPR203C
Murata Power Solutions
DC/DC Converters 3W 5V to +/-5.2V
Data Sheet
Negotiable
