Product Summary
The ics252m-25lf is a low cost, dual-output, field programmable clock synthesizer. The ics252m-25lf can generate two output frequencies from 314 kHz to 200 MHz using up to two independently configurable PLLs. The outputs may employ Spread Spectrum techniques to reduce system electro-magnetic interference (EMI).
Parametrics
ics252m-25lf absolute maximum ratings: (1)Supply Voltage, VDD, Referenced to GND: -0.5 to 7 V; (2)Inputs, Referenced to GND: -0.5 to VDD+ 0.5 V; (3)Clock Outputs, Referenced to GND: -0.5 to VDD+ 0.5 V; (4)Storage Temperature: -65 to 150 ℃; (5)Soldering Temperature, Max 10 seconds: 260 ℃; (6)Junction Temperature: 125 ℃.
Features

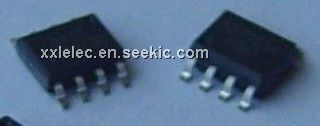

ics252m-25lf features: (1)8-pin SOIC package; (2)Two addressable registers; (3)Input crystal frequency of 5 to 27 MHz; (4)Clock input frequency of 3 to 150 MHz; (5)Output clock frequencies up to 200 MHz; (6)Configurable Spread Spectrum Modulation; (7)Operating voltage of 3.3 V; (8)Replaces multiple crystals and oscillators; (9)Controllable output drive levels; (10)Advanced, low-power CMOS process; (11)Available in RoHS 5 (green) or RoHS 6 (green and lead free) compliant package.

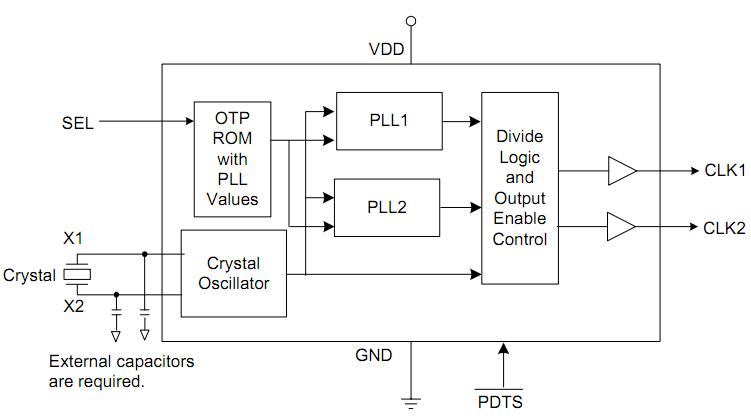

Diagrams
