Product Summary

The icx673aka is an “EXview HAD CCD II” device. The “EXview HAD CCD II” technology of the icx673aka is a further evolved version of the “EXview HAD CCD” in which “Super HAD CCD II” technology has been incorporated.

Parametrics

icx673aka absolute maximum ratings: (1)Sensitivity (F5.6), Typ.: 2450 mV; (2)Saturation signal, Min.: 1400 mV; (3)Smear (F5.6), Typ.: -110 dB.

Features

icx673aka features: (1)Horizontal (effective) resolution: 960 pixels (960H CCD image sensor); (2)High sensitivity and high saturation signal.

Diagrams

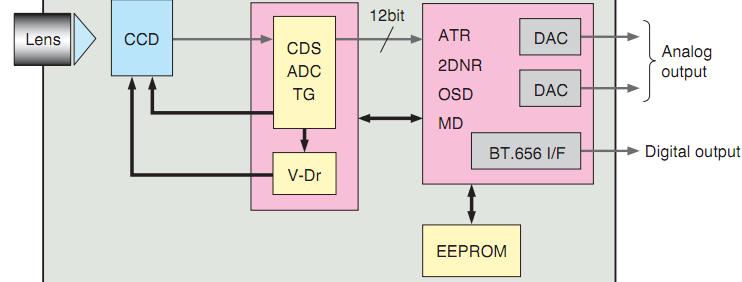

icx673aka block diagram
