Product Summary
The ina-03170-tr1 is a is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifier. The ina-03170-tr1 housed in a hermetic, high reliability package. The ina-03170-tr1 is designed for narrow or wide bandwidth commercial, industrial and military applications that require high gain and low noise IF or RF amplification with minimum power consumption.
Parametrics
ina-03170-tr1 absolute maximum ratings: (1)Device Current: 25 mA; (2)Power Dissipation: 200 mW; (3)RF Input Power: +13 dBm; (4)Junction Temperature: 200 ℃; (5)Storage Temperature: –65 to 200 ℃.
Features
ina-03170-tr1 features: (1)Cascadable 50 Ω Gain Blo; (2)Low Noise Figure: 2.5 dB Typical at 1.5 GHz; (3)High Gain: 26.0 dB Typical at 1.5 GHz; (4)3 dB Bandwidth: DC to 2.8 GHz; (5)Unconditionally Stable; (6)Low Power Dissipation; (7)Hermetic Gold-Ceramic Surface Mount Package.

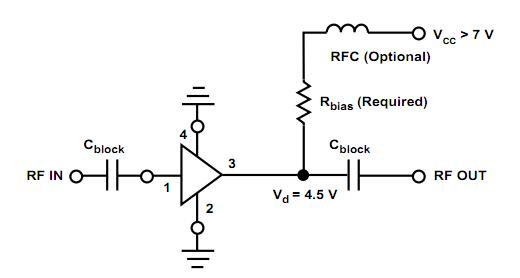

Diagrams
