IPS6021SPBF

Product Summary

The ips6021spbf is a five terminal Intelligent Power Switch (IPS) for use in a high side configuration. The ips6021spbf features short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current of the ips6021spbf is limited to the Ilim value. The current limitation is activated until the thermal protection acts. The over-temperature protection turns off the device if the junction temperature exceeds the Tshutdown value. The ips6021spbf will automatically restart after the junction has cooled 7 ℃ below the Tshutdown value. The reverse battery protection turns On the MOSFET. A diagnostic pin of the ips6021spbf provides different voltage levels for each fault condition. The double level shifter circuitry will allow large offsets between the logic and load ground.

Parametrics

ips6021spbf absolute maximum ratings: (1)Vout, Maximum output voltage: Vcc-35 to Vcc+0.3 V; (2)Voffset, Maximum logic ground to load ground offset: Vcc-35 to Vcc+0.3 V; (3)Vin, Maximum input voltage: -0.3 to 5.5 V; (4)Vcc max., Maximum Vcc voltage: 36 V; (5)Vcc cont., Maximum continuous Vcc voltage: 28 V; (6)Vcc sc., Maximum Vcc voltage with short circuit protection: 28 V; (7)Iin max., Maximum IN current: -3 to 10 mA; (8)Idg max., Maximum diagnostic output current: -3 to 10 mA; (9)Vdg, Maximum diagnostic output voltage: -0.3 to 5.5 V; (10)Pd, Maximum power dissipation: 25 W; (11)ESD, Electrostatic discharge voltage: 1500 V; (12)Tj max., Max. storage & operating temperature junction temperature: -40 to 150 ℃; (13)Tsoldering, Soldering temperature (10 seconds): 300 ℃.

Features

ips6021spbf features: (1)Over temperature shutdown (with auto-restart); (2)Short circuit protection (current limit); (3)Reverse battery protection (turns On the MOSFET); (4)Full diagnostic capability (short circuit to battery); (5)Active clamp; (6)Open load detection in On and Off state; (7)Ground loss protection; (8)Logic ground isolated from power ground; (9)ESD protection.

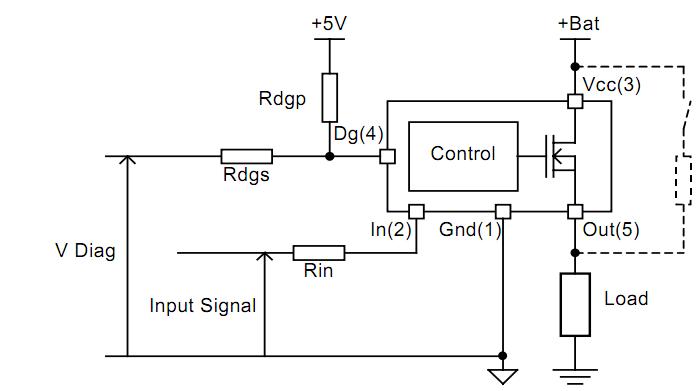

Diagrams
