Product Summary

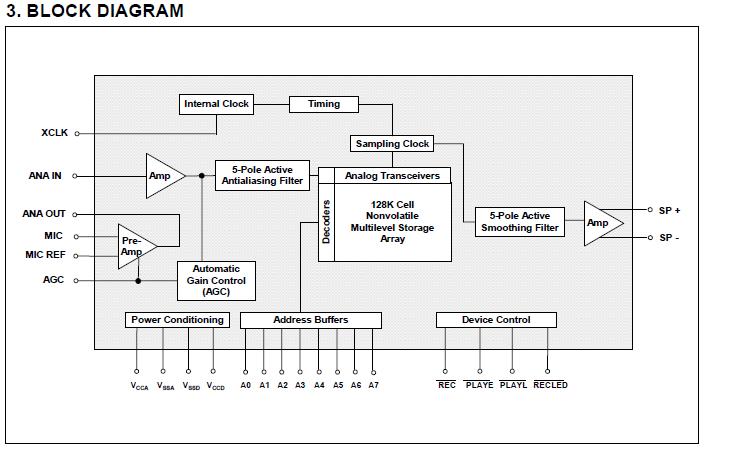

The isd1416sy is a single-chip, voice record/playback solution to short-duration messaging applications. It include an on chip oscillator, microphone preamplifier, automatic gain control, anti-aliasing filter, smoothing filter, and speaer several passive components, two push buttons and a power source. Recordings are stored into on chip nonvolatile memory cells, providing zero-power message storage. The isd1416sy is made possible through winbond’s patented multi level storage technology. Voice and audio signals are stored directly into memory intheir natural form, providing high-quality, solidstage voice reproduction.

Parametrics

isd1416sy absolute maximum ratings: (1)junction temperature: 150℃; (2)storage temperature range: -65 to 150℃; (3)voltage applied to any pin: VSS-0.3V to VCC+0.3V; (4)voltage applied to any pin (input current limited to ±20mA): VSS-1.0V to VCC +1.0V; (5)lead temperature (soldering 10 sec): 300℃; (6)VCC-VSS: -0.3V to + 7.0 V.

Features

isd1416sy features: (1)single + 5 volt power supply; (2)duration: 14 and 20 seconds; (3)easy-to-use single-chip, voice record/playback solution; (4)high-quality, natural voice/audio reproduction; (5)manual switch or microcontroller compatible playback can be edge- or level-activated; (6)directly cascadable for longer durations; (7)automatic power down; (8)zero ower message storage; (9)fully addressable to handle multiple messages; (10)100 year messsage retention; (11)100000 record cycles; (12)on chip oscillator; (13)programmer support for play only applicatins; (14)pacaged types: leaded and ledad free; (15)available in die, PDIP and SOIC; (16)temperature: cummercial packaged unit 0-70℃，die 0-50℃, industrial packaged unit -40 to 85℃.
