ISD4003-04MPY

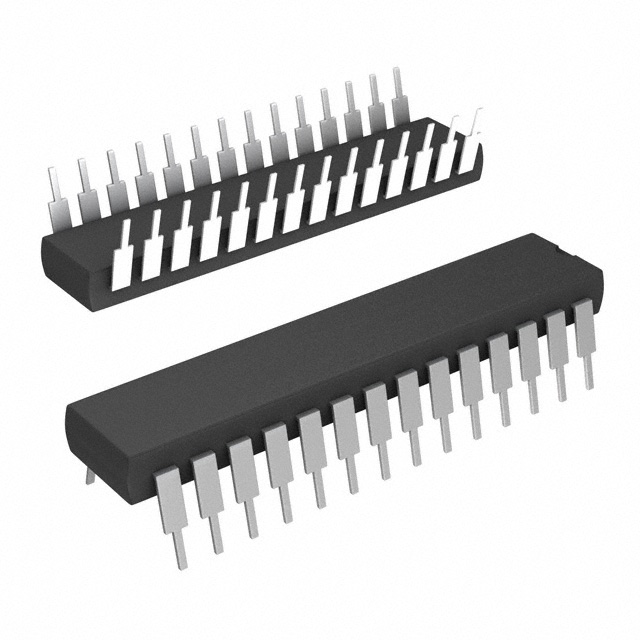

isd4003-04mpy, International Software Development (Shenzhen) Co. Ltd., 28-DIP, 28-DIP, single-chip voice record/playback device, -0.3V to + 7.0 V, 3V, 15mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: ISD4003-04MPY

Brand:: International Software Development (Shenzhen) Co. Ltd. - ISD | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:ISD4003-04MPY
US $2.30 - 2.50
Quantity:

piece

Product Summary

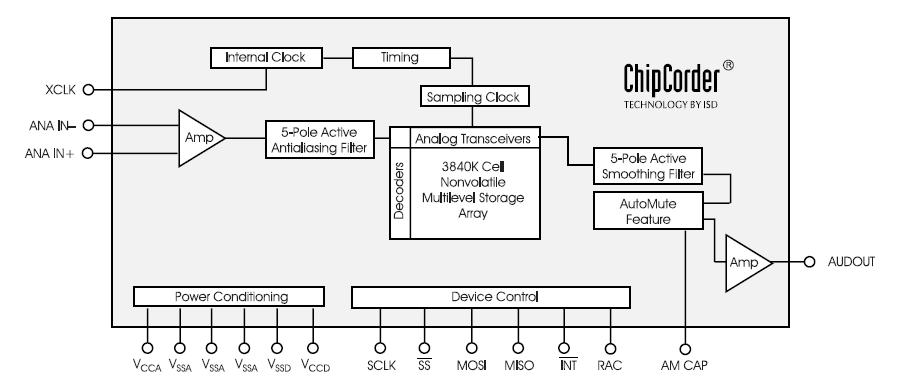

The isd4003-04mpy is a single-chip voice record/playback device. It provides high-quality, 3V, single-chip record/playbac solutions for 8- to 16-minute messaging applications which are ideal for cellular phones and other portable products. The isd4003-08mpy include an on chip oscillator, antialiasing filter, smoothing filter, automute feature, audio amplifier, and high density, multilevel flash storage array. The isd4003-08mpy is designed to be used in a microprocessor- or microcontroller-based sytem. Adress and control are accomplished through a serial peripheral interface or microwire serial interface to minimize pin count.

Parametrics

isd4003-04mpy absolute maximum ratings: (1)junction temperature: 150℃; (2)storage temperature range: -65℃ to + 150℃; (3)voltage applied to any pin: VSS-0.3V to VCC + 0.3V; (4)voltage applied to MOSI, SCLK, INT, RAC and SS pins: VSS-1.0V to 5.5V; (5)lead temperature (soldering 10 seconds): 300℃; (6)VCC-VSS: -0.3V to + 7.0 V.

Features

isd4003-04mpy features: (1)single chip voice record/playback solution; (2)single + 3 V supply; (3)low power consumption: operating current ICC play= 15mA, ICC rec= 25mA, standby current 1μA; (4)single chip durations of 8 minutes; (5)high quality, natural voice/audio reproduction; (6)automute feature provides background noise attenuation during periods of silence; (7)no algorithm development required; (8)microcontroller SPI or microwire serial interface; (9)fully addressable to handle multiple messages; (10)nonvolatile message storage; (11)power consumption controlled by SPI or microwire control register; (12)100 year message retention; (13)100K record cycle; (14)on chip cloc source; (15)available in die form, PDIP, SOIC, and TSOP; (16)extended temperature (-20℃ to + 70℃) and industrial temperature (-40℃ to + 85℃) versions available.
