Product Summary
The k2400f1 is a silicon bilateral voltage triggered switch with greater power-handling capabilities than standard diacs. Upon application of a voltage exceeding the Sidac breakover voltage point, the switches of the k2400f1 on through a negative resistance region to a low on-state voltage. Applications of the k2400f1 include: High voltage lamp ignitors, Natural gas ignitors, Gas oil ignitors, High voltage power supplie, Xenon ignitors, Over voltage protector, Pulse generators, Fluorescent lighting ignitors and HID lighting ignitor.
Parametrics
k2400f1 absolute maximum ratings: (1) IT (RMS) : 1.0A (On-State RMS Current Tj≤125°C, 50/60Hz single Wave) ; (2) Repetitive Peak Off-State Voltage VDRM: ±190V ; (3) Breakover Voltage 50/60Hz Sine Wave VBO: 220V; (4) Repetitive Peak Off-State Current 50/60Hz Sine Wave V=VDRM IDRM: 5μA; (5) IBO: 10μA(Breakover Current 50/60Hz Sine Wave) .
Features
k2400f1 features: (1) AC circuit oriented; (2) Glass-passivated junctions; (3) High surge current capability.

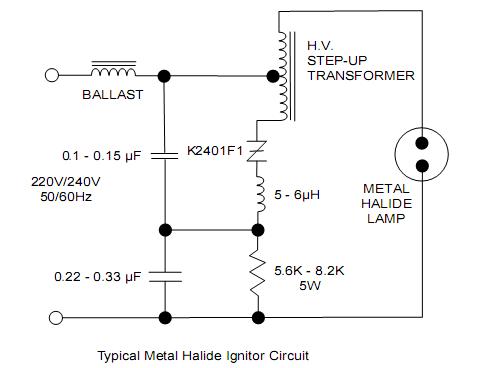

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 K2400F1 |
Littelfuse |
Sidacs 240V |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
K2400EH70 |
Littelfuse |
Sidacs Sidac 240V HI ENERGY |
Data Sheet |
|
|
||||||||||||
|
K2400EH70AP |
Littelfuse |
Sidacs Sidac 240V HI ENERGY |
Data Sheet |
|
|
||||||||||||
|
K2400EH70RP2 |
Littelfuse |
Sidacs Sidac 240V HI ENERGY |
Data Sheet |
|
|
||||||||||||
|
K2400F1 |
Littelfuse |
Sidacs 240V |
Data Sheet |
Negotiable |
|
||||||||||||
|
K2400F23RP |
Littelfuse |
Sidacs 240V |
Data Sheet |
Negotiable |
|
||||||||||||
|
K2400G |
Littelfuse |
Sidacs 240V |
Data Sheet |
|
|
||||||||||||
