Product Summary

The k9f4g08u0a-pcbo is a 4G-bit NAND Flash Memory with spare 128M-bit. Its NAND cell provides the most costeffective solution for the solid state application market.

Parametrics

k9f4g08u0a-pcbo absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.6 to +4.6 V; (2)Temperature Under Bias: -10 to +125 ℃; (3)Storage Temperature: -65 to +150 ℃; (4)Short Circuit Current: 5 mA.

Features

k9f4g08u0a-pcbo features: (1)Voltage Supply: 2.70V ~ 3.60V; (2)Organization: Memory Cell Array: (512M + 16M) x 8bit, Data Register : (2K + 64) x 8bit; (3)Automatic Program and Erase: Page Program: (2K + 64)Byte, Block Erase: (128K + 4K)Byte; (4)Page Read Operation: Page Size: (2K + 64)Byte, Random Read : 25μs(Max.), Serial Access : 25ns(Min.).

Diagrams

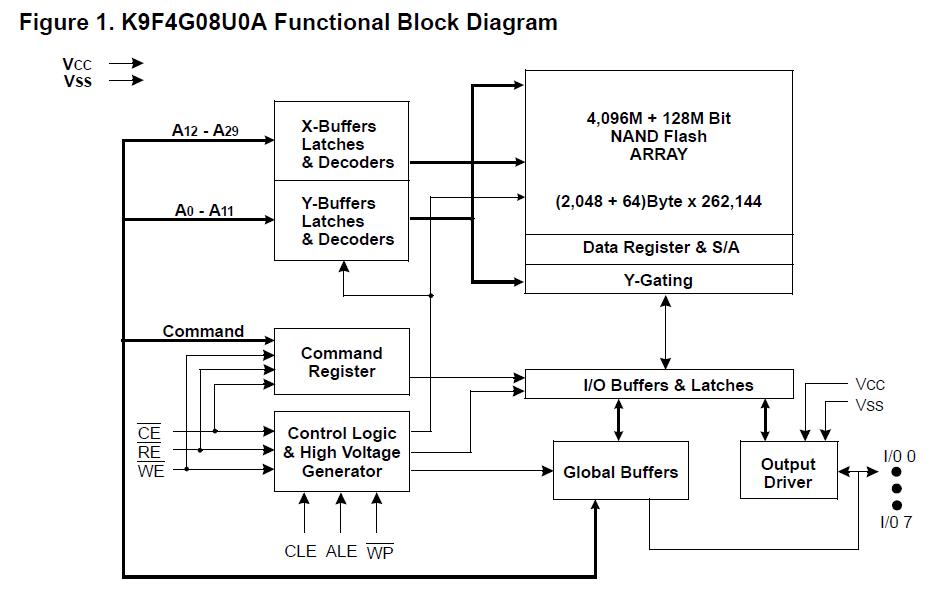

k9f4g08u0a-pcbo functional block diagram
