Product Summary

The LH2422S is a CRT video driver. It is a wide bandwidth, large signal amplifier designed to swing large voltages of short duration. The LH2422S works on a transimpedanc principle, in that about ±6.5 mA input current results in an output voltage of 土 20V. The primary application for this very fast stewing am­plifier is for driving high resolution monochrome or color graphics monitors. The LH2422S can easily energize a 10 ns pixel. This makes the LH2422S very attractive for 1024 x 1024 displays. The LH2422S is DC coupled and can interface to national LM1201 and LM1203 preamplifiers. Applications are (1)CRT driver for color and monochrome monitors; (2)High voltage transimpedance amplifier.

Parametrics

LH2422S absolute maximum ratings: (1)Supply voltage, Vqc: + 70 V; (2)Power dissipation, Pd: 7 W; (3)Storage temperature range, TSTG: -40°C to +125°C; (4)Operating temperature range, Tcqso: -20°C to + 80°C; (5)Lead temperature (soldering, < 10 sec): 300 °C.

Features

LH2422S features: (1)110 MHz bandwidth at 40V swings; (2)Rise/fall times of 3.3 ns; (3)Drives 8.5 pF capacitive load; (4)Pin compatible with CR2424; (5)DC coupled for output levei adjust; (6)Output signal can swing 50V.

Diagrams

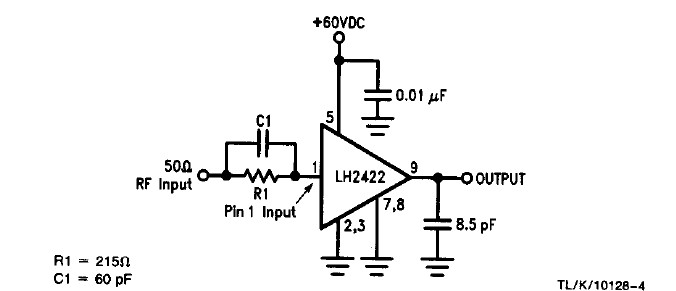

LH2422S pin connection
