Product Summary
The lm64p762 is a Large Size Graphic Type LCD Module.
Parametrics
lm64p762 absolute maximum ratings: (1)Display size: 15 [6.0] cm; (2)Dot format (H × V): 640 × 480 dot; (3)Dot pitch (H × V): 0.19 × 0.19 mm; (4)Active area (H × V): 121.6 × 91.2 mm; (5)Panel type: *1; (6)Panel mode: Transmissive; (7)Color: B/W color; (8)Contrast ratio: 18 : 1; (9)Response time: 150 ms.
Features
lm64p762 features: (1)15 cm VGA format; (2)Black & white display; (3)Mechanically compatible with lm64p762; (4)Thin (5.8 mm) & lightweight (145 g); (5)High contrast (18 : 1).

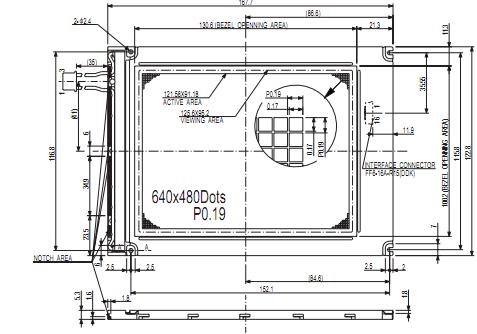

Diagrams
