LNK564PN

lnk564pn, Energy Efficient Off-Line Switcher IC, 700 V, 200 mA, Power IC Ltd.

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: LNK564PN

Brand:: Power IC Ltd. - Power | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:LNK564PN
US $2.30 - 2.50
LNK564PN

US $0.10 - 2.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

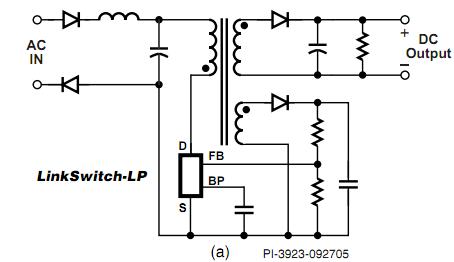

The lnk564pn is an Energy Efficient Off-Line Switcher IC for Linear Transformer Replacement. The lnk564pn cost effectively replaces all unregulated isolated linear transformer based (50/60 Hz) power supplies up to 3 W output power. For worldwide operation, a single universal input design replaces multiple linear transformer based designs. The applications of the lnk564pn include Chargers for cell/cordless phones, PDAs, power tools, MP3/portable audio devices, shavers etc.,Standby and auxiliary supplies.

Parametrics

lnk564pn absolute maximum ratings: (1)DRAIN Voltage: 700 V; (2)Peak DRAIN Current: 200 mA (375 mA); (3)Peak Negative Pulsed Drain Current (see Fig. 11): 100 mA(3); (4)FEEDBACK Voltage: -0.3 V to 9 V; (5)FEEDBACK Current: 100 mA; (6)BYPASS Voltage: -0.3 V to 9 V; (7)Storage Temperature: -65℃ to 150 ℃; (8)Operating Junction Temperature: -40℃ to 150 ℃; (9)Lead Temperature: 260 ℃.

Features

lnk564pn features: (1)Lowest component count switcher; (2)Very tight parameter tolerances using proprietary IC trimming technology and transformer construction techniques enable Clampless designs – decreases component count/system cost and increases efficiency; (3)Meets industry standard requirements for thermal overload protection eliminates the thermal fuse used with linear transformers or additional components in RCC designs; (4)Frequency jittering greatly reduces EMI – enables low cost input filter configuration; (5)Meets HV creepage requirements between DRAIN and all other pins, both on the PCB and at the package; (6)Proprietary E-Shield transformer eliminates Y-capacitor.
