Product Summary
The lq043t3dx0a is a color active matrix LCD module incorporating amorphous silicon TFT(Thin Film Transistor). The lq043t3dx0a is composed of a color TFT-LCD panel, driver ICs, Input FPC, a back light unit and a touch panel. Graphics and texts of the lq043t3dx0a can be displayed on a 480 × 3 × 272 dots panel with about 16million colors by supplying 24bit data signals(8bit × RGB), Four timing signals, logic (typ. +2.5V), analog (typ. +5V) supply voltages for TFT-LCD panel driving and supply voltage for back light.
Parametrics
lq043t3dx0a absolute maximum ratings: (1)Input voltage, VI: -0.3 to VCC+0.3 V; (2)2.5 V Power supply voltage, VCC: 0 to +4.5 V; (3)5 V Power supply voltage, AVDD: 0 to +6.0 V; (4)Temperature for storage, Tstg: -25 to +70 ℃; (5)Temperature for operation, Topa: -10 to +60 ℃; (6)LED Input electric current, ILED: 35 mA; (7)LED electricity consumption, PLED: 123 mW.
Features
lq043t3dx0a features: (1)DC voltage, VCC: +2.3 to +3.3 V; (2)DC Current, ICC: 1.2 to 3 mA; (3)DC voltage, AVDD: +4.8 to +5.2 V; (4)DC Current, IAVDD: 10 to 18 mA; (5)VRFVCC: 100 mVp-p; (6)VRFAVDD: 100 mVp-p; (7)Input voltage (Low), VIL: 0.2 VCC V; (8)Input voltage (High), VIH: 0.8 VCC V; (9)Input current (Low), IOL: 4.0 μA; (10)Input current (High), IOH: 4.0 μA.

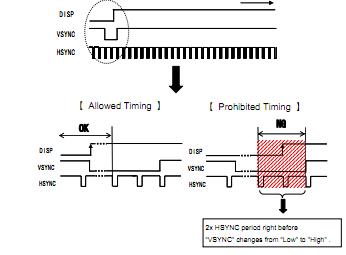

Diagrams
