Product Summary
The lq070t5gg03r is a Color TFT-LCD Module.
Parametrics
lq070t5gg03r absolute maximum ratings: (1)Display size: 18 cm; (2)No. of pixels: 112320 pixel; (3)Dot format (H × V): 480 × RGB × 234 dot; (4)Dot pitch (H × V): 0.107 × 0.372 mm; (5)Active area (H × V): 154.1 × 87.0 mm; (6)Input signal system: NTSC/PAL*1; (7)Input video signal: TFT Specific Analog RGB; (8)Viewing direction: Wide viewing angle.
Features
lq070t5gg03r features: (1)18 cm [7] display size; (2)Wide temperature range (Topr: -30 to + 85 ℃, Tstg: -30 to +85 ℃); (3)Wide viewing angle (Horizontal: 130°, Vertical: 105°); (4)Wide screen (16 : 9).

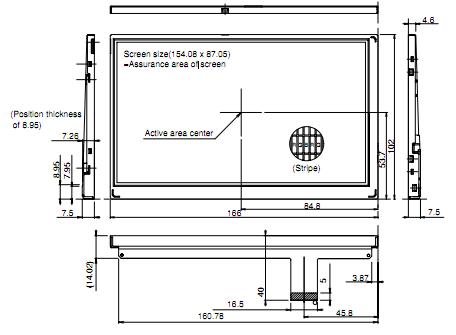

Diagrams
