The lre6sfaabb11z is an enhanced thin film LED. Its applications include traffic lights, backlighting (LCD, switches, keys, displays, illuminated advertising), interior and exterior automotive lighting (e.g. dashboard backlighting and brake lights), substitution of micro incandescent lamps, marker lights (e.g. steps, exit ways, etc.) and signal and symbol luminaire.
Parametrics
lre6sfaabb11z features: (1)Betriebstemperatur Operating temperature range Top: -40 to + 110℃; (2)Lagertemperatur Storage temperature range Tstg: -40 to + 110℃; (3)Sperrschichttemperatur Junction temperature Tj: + 125℃; (4)Sperrschichttemperatur Junction temperature Tj: >150 for short term applications; (5)Durchlassstrom Forward current (TA=25℃) IF: 70 mA; (6)Stosstrom Surge current t ≤ 10 μs, D = 0.1, TA=25℃ IFM: 100 mA; (7)Sperrspannung Reverse voltage (TA=25℃) VR: 12 V; (8)Warmewiderstand Thermal resistance Sperrschicht/Umgebung RthJA: 300 K/W; (9)Junction/ambient Sperrschicht/Lotpad Junction/soldering point RthJS: 130 K/W.
Features
lre6sfaabb11z features: (1)package: white P-LCC-4 package, colorless clear silicone resin; (2)more light due to higher optical efficiency; (3)wavelength: 633 nm (super-red), 625 nm (red), 617 nm (amber), 606 nm (orange), 590 nm (yellow); (4)viewing angle: Lambertian Emitter; (5)technology: InGaAlP; (6)optical efficiency: 38 lm/W (super-red), 49 lm/W (red), 69 lm/W (amber, orange), 44 lm/W (yellow); (7)grouping parameter: luminous intensity, forward voltage, wavelength; (8)assembly methods: suitable for all SMT assembly methods; (9)soldering methods: reflow soldering and TTW soldering; (10)preconditioning: acc. to JEDEC Level 2; (11)taping: 8 mm tape with 2000/reel, Φ180 mm or 8000/reel, Φ330 mm; (12)ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-D.

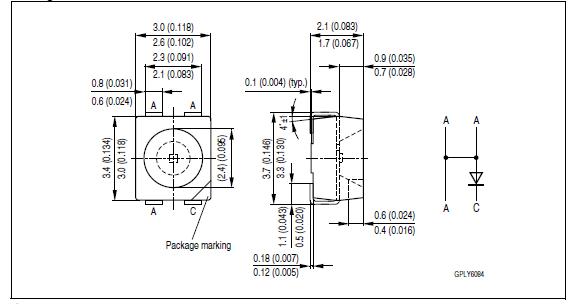

Diagrams
