Product Summary
The max6620ati+t is a Quad Linear Fan-Speed Controller. The max6620ati+t voltage for the fans are controlled directly over the I2C interface. Each output drives the base of an external bipolar transistor or the gate of a FET in highside drive configuration. Voltage feedback at the fans power-supply terminal is used to force the correct output voltage.
Parametrics
max6620ati+t absolute maximum ratings: (1)VCC to GND: -0.3V to +6.0V; (2)FAN_FAIL, SDA, SCL to GND: -0.3V to +6.0V; (3)ADDR, SPINUP_START, DAC_START, WD_START, X1, X2 to GND: -0.3V to (VCC + 0.3V); (4)All Other Pins to GND: -0.3V to +13.5V; (5)Input Current at DACOUT_ Pins (Note 1): +5mA/-50mA; (6)Input Current at Any Pin (Note 1): 5mA; (7)ESD Protection (all pins, Human Body Model)(Note 2): ±2000V; (8)Operating Temperature Range: -40°C to +125°C; (9)Junction Temperature: +150°C; (10)Storage Temperature Range: -65°C to +150°C; (11)Soldering Temperature (reflow): +260°C; (12)Lead Temperature (soldering, 10s): +300°C.
Features
max6620ati+t features: (1)Controls Up to Four Independent Fans With Linear (DC)Drive; (2)Uses Four External Low-Cost Pass Transistors; (3)1% Accuracy Precision RPM Control; (4)Controlled Voltage Rate-Of-Change for Best Acoustics; (5)I2C Bus Interface; (6)3.0V to 5.5V Supply Voltage Range; (7)250μA (typ)Operating Supply Current; (8)3μA (typ)Shutdown Supply Current; (9)Small 5mm x 5mm Footprint.

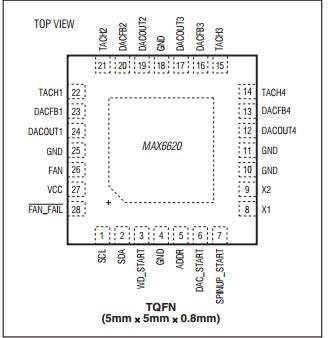

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX6620ATI+T |
Maxim Integrated Products |
Motor / Motion / Ignition Controllers & Drivers Quad Linear Fan Speed Controller |
Data Sheet |
|
|
||||||||||||
