Product Summary
The max8060596+t is a Microprocessor Supervisory Circuit. The max8060596+t reduces the complexity and number of components required for power-supply monitoring and battery-contro functions in microprocessor (μP) systems. The max8060596+t significantly improves system reliability and accuracy compared to separate ICs or discrete components. The applications of the max8060596+t include Battery-Powered Computers and Controllers, Intelligent Instruments, Automotive Systems, Critical μP Power Monitoring.
Parametrics
max8060596+t absolute maximum ratings: (1)Terminal Voltage VCC: -0.3V to 6.0V; (2)Terminal Voltage VBATT: -0.3V to 6.0V; (3)Terminal Voltage All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (4)Input Current VCC: 200mA; (5)Input Current VBATT: 50mA; (6)Input Current GND: 20mA; (7)Output Current VOUT: Short-Circuit Protected for up to 10sec; (8)Output Current All Other Outputs: 20mA; (9)Output Current Rate of Rise, VCC, VBATT: 100V/μs; (10)Continuous Power Dissipation Plastic DIP: 727mW; (11)Continuous Power Dissipation SO: 471mW; (12)Continuous Power Dissipation CERDIP: 640mW; (13)Operating Temperature Ranges: -55 ℃ to +125 ℃; (14)Storage Temperature Range: -65 ℃ to +160 ℃; (15)Lead Temperature (soldering, 10sec): +300 ℃.
Features
max8060596+t features: (1)Precision Supply-Voltage Monitor: 4.65V; (2)Reset Time Delay – 200ms; (3)Watchdog Timer – 1.6sec Timeout; (4)Battery-Backup Power Switching; (5)200μA Quiescent Supply Current; (6)50nA Quiescent Supply Current in Battery-Backup Mode; (7)Voltage Monitor for Power-Fail or Low-Batt Warning; (8)Power-Fail Accuracy Guaranteed to ±2%; (9)Guaranteed RESET Assertion to VCC = 1V; (10)8-Pin SO and DIP Packages.

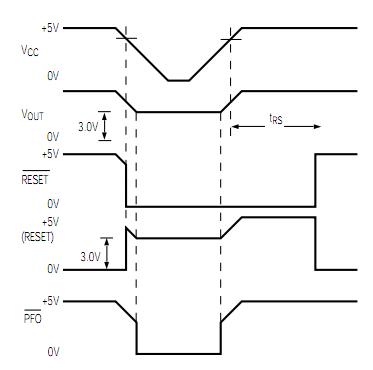

Diagrams
