Product Summary
The MG15G1AL2 is a GTR module. The applications of it include high power switching and motor control.
Parametrics
MG15G1AL2 absolute maximum ratings: (1)Collector-base voltage: 600V; (2)Collector-emitter sustaining voltage: VCEX(SUS): 600V, VCEO(SUS): 450V; (3)Emitter-base voltage: 6V; (4)Collector current: IC: 15A, ICP: 30A; (5)Collector current: -IC: 15A; (6)Base current: 1A; (7)Collector power dissipation: 120W; (8)Junction temperature: 150℃; (9)Storage temperature range: -40℃ to +125℃; (10)Isolation voltage: 2500V.
Features
MG15G1AL2 features: (1)The collector is isolated from case; (2)With built-in free wheeling diode; (3)High DC current gain:hFE=100(min.)(IC=15A); (4)Low saturation voltage:VCE(SAT)=2V(max.)(IC=15A); (5)High speed:tf=2us(max.)(IC=15A).

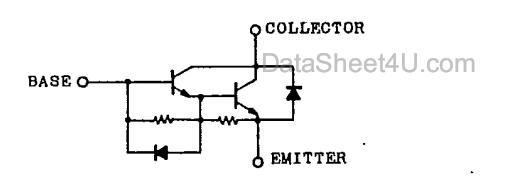

Diagrams
