Product Summary
The mig20j501 is a semiconductor. The mig20j501 can be used in inverter air conditioners, and pwm carrier frequency 3 khz.
Parametrics
mig20j501 absolute maximum ratings: (1)supply voltage: 450 V; (2)supply voltage (surge): 500 V ; (3)collector emitter voltage: 600 V; (4)collector current: 20 A ; (5)collector current (peak): 40 A; (6)collector power dissipation: 50 W; (7)junction temperature: 150°C.
Features
mig20j501 features: (1)Maximum Rating: VCES=600 V, IC=20 A; (2)Control IC: High voltage IC×3+low voltage IC×1; (3)Functions: Over current protection: only low-side arm; (4)Applications: Inverter air conditioners and PWM carrier frequency 3 kHz.

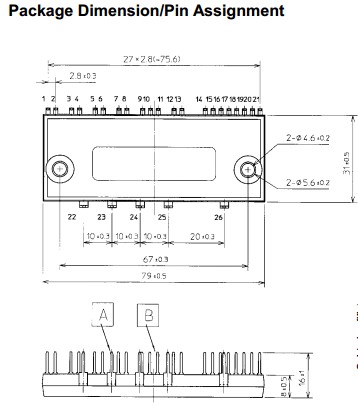

Diagrams
