Product Summary

The msc1450m is a high-power pulsed transistor specifically designed for IFF avionics applications. The msc1450m is capable of withstanding a minimum 25:1 load mismatch at any phase angle under full rated conditions. The msc1450m is housed in the unique BIGPAC package with internal input/output matching structures.

Parametrics

msc1450m absolute maximum ratings: (1) Collector-Supply Voltage Vcc: 55V; (2) Device Current Ic: 28A; (3) Power Dissipation Pdiss: 910W; (4) Junction Temperature TJ: 250°C; (5) Storage Temperature TSTG: -65 to +200°C.

Features

msc1450m features: (1) refactory/gold metallization; (2) low thermal resistance; (3) ruggedized VSWR 25:1; (4) internal input/output matching; (5) metal/cermamic hermetic package; (6) Pout=450W minimum; (7) 7dB gain.

Diagrams

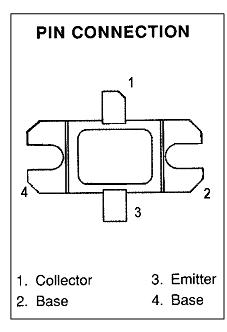

msc1450m pin connection
