Product Summary

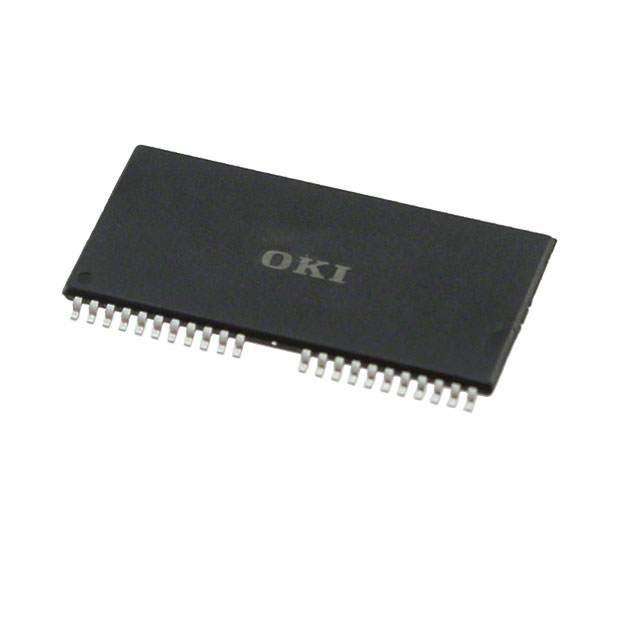

The msm5118165f-60j is a 1,048,576-word 16-bit dynamic RAM fabricated in Oki’s silicon-gate CMOStechnology. The msm5118165f-60j achieves high integration, high-speed operation, and low-powerconsumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metalCMOS process. The msm5118165f-60j is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
Parametrics
msm5118165f-60j absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS VIN, VOUT: –0.5 to VCC + 0.5 V; (2)Voltage VCC Supply relative to VSS VCC: –0.5 to 7 V; (3)Short Circuit Output Current IOS: 50 mA; (4)Power Dissipation PD: 1 W; (5)Operating Temperature Topr: 0 to 70℃; (6)Storage Temperature Tstg: –55 to 150℃
Features
msm5118165f-60j features: (1)1,048,576-word × 16-bit configuration; (2)Single 5V power supply, 10% tolerance; (3)Input: TTL compatible, low input capacitance; (4)Output : TTL compatible, 3-state; (5)Refresh : 1024 cycles/16ms; (6)Fast page mode with EDO, read modify write capability; (7)CAS before RAS refresh, hidden refresh, RAS-only refresh capability.

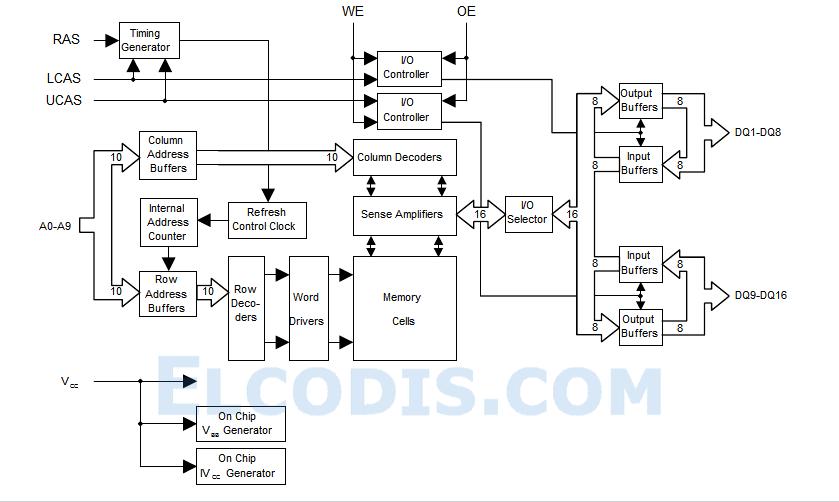

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSM5118165F-60J3-7 |
|
IC DRAM 16MBIT 60NS 42SOJ |
Data Sheet |
Negotiable |
|
||||
