MSP430F2122IPWR

msp430f2122ipwr, mixed signal microcontroller, -0.3 V to 4.1 V, ±2 mA, TSSOP, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: MSP430F2122IPWR

Brand:: Texas Instruments - TI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:MSP430F2122IPWR
US $2.30 - 2.50
Quantity:

piece

Product Summary

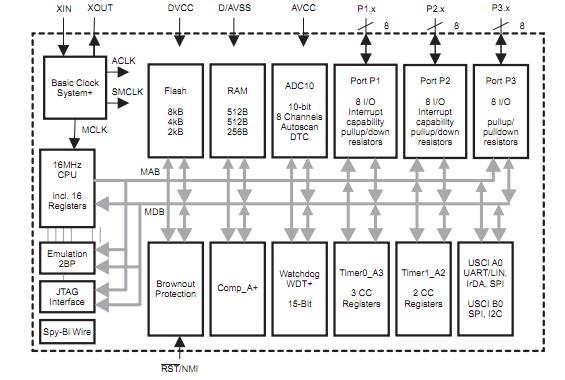

The msp430f2122ipwr is a mixed signal microcontroller. The msp430f2122ipwr has one active mode and five software-selectable low-power modes of operation.

Parametrics

msp430f2122ipwr absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Unprogrammed device: -55 to 150 ℃; (5)Storage temperature, Tstg, Programmed device: -55 to 105 ℃.

Features

msp430f2122ipwr features: (1)Low Supply Voltage Range: 1.8 V to 3.6 V; (2)Ultra-Low Power Consumption; (3)Ultra-Fast Wake-Up From Standby Mode in Less Than 1 μs; (4)16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time; (5)Basic Clock Module Configurations; (6)16-Bit Timer0_A3 With Three Capture/Compare Registers; (7)16-Bit Timer1_A2 With Two Capture/Compare Registers; (8)On-Chip Comparator for Analog Signal; (9)Compare Function or Slope Analog-to-Digital (A/D) Conversion; (10)10-Bit 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller; (11)Universal Serial Communication Interface; (12)Brownout Detector; (13)Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse; (14)Bootstrap Loader; (15)On-Chip Emulation Module; (16)Family Members Include: MSP430F2122; (17)Available in 28-Pin TSSOP (PW) and 32-Pin QFN (RHB or RTV) Packages; (18)For Complete Module Descriptions.
