Product Summary
The mss1278-333mld is a SMT Power Inductor.
Features
MSS1278-333MLD features: (1)Designer’s Kit C380 contains 3 each of all values.; (2)Core material Ferrite; (3)Core and winding loss See www.coilcraft.com/coreloss; (4)Terminations RoHS compliant matte tin over nickel over phos; (5)bronze. Other terminations available at additional cost.; (6)Weight: 3.8 – 4.6 g; (7)Ambient temperature –40℃ to +85℃ with Irms current, +85℃ to +125°C with derated current; (8)Storage temperature Component: –40℃ to +125℃.; (9)Packaging: –40℃ to +80℃; (10)Resistance to soldering heat Max three 40 second reflows at +260℃, parts cooled to room temperature between cycles; (11)Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30℃ / 85% relative humidity); (12)Failures in Time (FIT) / Mean Time Between Failures (MTBF); (13)38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-33; (14)Packaging 500/13” reel; Plastic tape: 24 mm wide, 0.4 mm thick,; (15)16 mm pocket spacing, 8.1 mm pocket depth; (16)PCB washing Only pure water or alcohol recommended.

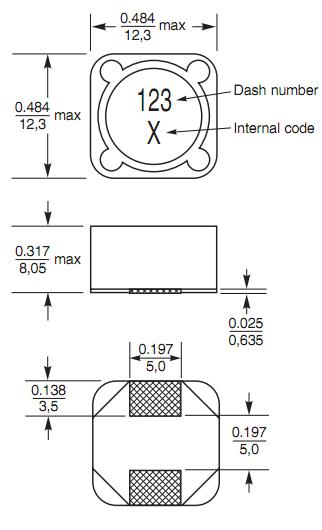

Diagrams
