Product Summary
The mt9j003i12stcu is a CMOS Digital Image Sensor for DSC Design. The applications of the device are (1)Digital still cameras; (2)Digital video cameras.
Parametrics
mt9j003i12stcu absolute maximum ratings: (1)Pixel Size: 1.67μm x 1.67μm; (2)Dynamic Range: 65.2dB; (3)Responsivity: 0.31 V/lux-sec (550nm); (4)Power Supply: Analog: 2.4–3.1V (2.8V nominal); (5)Digital: 1.7–1.9V (1.8V nominal); (6)I/O: 1.7–1.9V (1.8V nominal) or 2.4–3.1V (2.8V nominal); (7)HiSPi Tx: 0.4–0.8V (0.4V or 0.8V nominal); (8)Consumption: 638mW @ full resolution Optics; (9)CRA: 0 degree; (10)Temperature Range Operating: –30°C to +70°C; (11)Package: 10mm x 10mm 48-pin iLCC.
Features
mt9j003i12stcu features: (1)Simple two-wire serial interface; (2)Auto black level calibration; (3)Support for external mechanical shutter; (4)Support for external LED or xenon fash; (5)High frame rate preview mode with arbitrary downsize scaling from maximum resolution; (6)Programmable controls: gain, horizontal and vertical blanking, auto black level offset correction, frame size/rate, exposure, left-right and top-bottomimage reversal, window size, and panning; (7)Data interfaces: parallel or four-lane serial high-speed pixel interface (HiSPi) differential signallin(sub-LVDS); (8)On-die phase-locked loop (PLL) oscillator; (9)Bayer pattern downsize scaler; (10)Integrated position-based color and lens shading correction; (11)One-time programmable memory (OTPM) for storing module information.

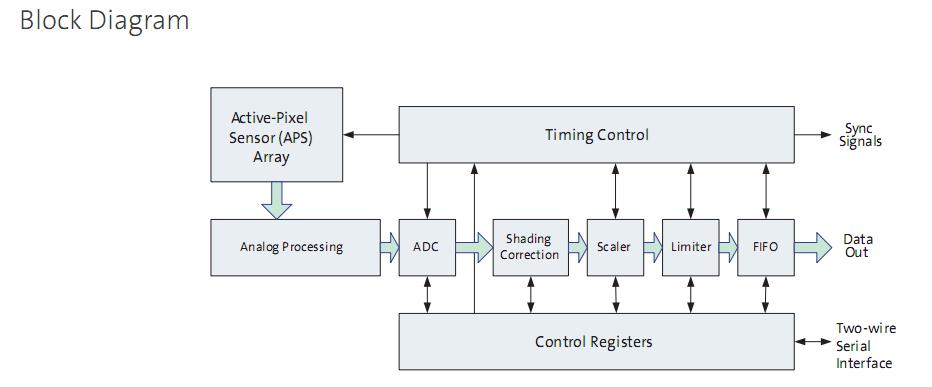

Diagrams
