Product Summary
The mx10flcdpc is a stand-alone high-performance and low power microcontroller designed for use in many applications which need code programmability. The Flash EPROM offers customers to program the device themselves. This feature increases the flexibility in many applications, not only in development stage, but also in mass production stage. In addition to the 80C51 standard functions, the device provides a number of dedicated hardware functions. The mx10flcdpc is a control-oriented CPU with on-chip program and data memory.
Parametrics
mx10flcdpc absolute maximum ratings: (1)VDD, Supply voltage: 4.5 to 5.5 V; (2)Vi, Input voltage (all inputs): -0.5 to VDD +0.5 V; (3)VVPP, Voltage on VPP pin to VSS: 0 to 13 V; (4)IOL(max), Maximum IOL per I/O pin: 15 mA; (5)Tstg, Storage temperature: -65 to 150℃; (6)Tamb, Operating ambient temperature(for all devices): 0 to 70℃.
Features
mx10flcdpc features: (1)80C51 CPU core; (2)4.5 ~ 5.5V voltage range; (3)2 to 16MHz clock frequency; (4)16K bytes MTP memory for code memory; (5)512 bytes internal data RAM; (6)Low power consumption; (7)Up to 16 digits LCD driver/controller; (8)Four 8 bit general purpose I/O ports; (9)Two standard 16-bit Timers; (10)On-chip Watch Dog Timer; (11)Two channel PWM outputs; (12)UART; (13)8 interrupt sources; (14)100 pin PQFP package; (15)Single clock or dual clock; (16)EMI compatibility.

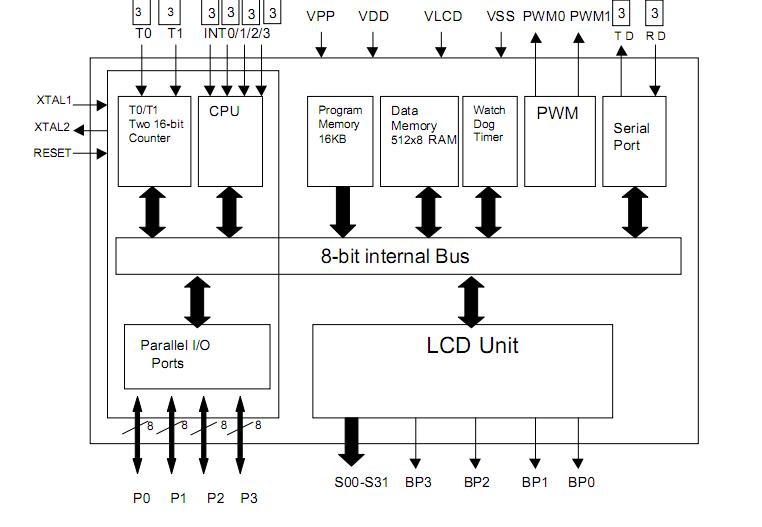

Diagrams
