Product Summary
The njm4580v-te2 is a dual operational amplifier. It is specifically designed for improving the tone control, which is most suitable for the audio application. The njm4580v-te2 is also suitable for the head phone amp at higher output current, and futher mode, the njm4580v-te2 can be applied for the handby type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the input low voltage source.
Parametrics
njm4580v-te2 absolute maximum ratings: (1)supply voltage: ±18V; (2)input voltage:±15V; (3)differential input voltage: ±30V; (4)output current: ±50mA; (5)operating temperature range:-40℃ to +85℃; (6)storage temperature range:-40℃ to +125℃.
Features
njm4580v-te2 features: (1)operating volyage:±2V to ±18V; (2)low input noise voltage:0.8uVrms typ.; (3)wide gain bandwidth product:15MHz typ.; (4)low distortion:0.0005% typ.; (5)slew rate:5V/us typ.; (6)package outline: DIP8, SIP8, EMP8, SSOP8, DMP8; (7)bipolar technology.

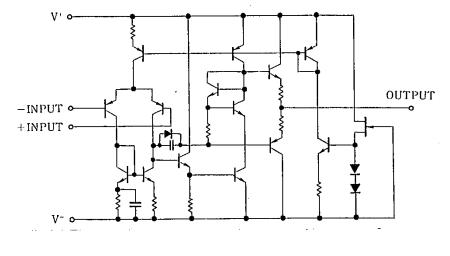

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM4580V-TE2 |
NJR |
Operational Amplifiers - Op Amps Dual |
Data Sheet |
|
|
||||||||||||
