Product Summary

The nl17sv16xv5t2g is an ultra-high performance single Buffer fabricated in sub-micron silicon gate 0.35 μm technology with excellent performance down to 0.9 V. The nl17sv16xv5t2g is ideal for extremely high-speed and high-drive applications. Additionally, limitations of board space are no longer a constraint. The very small SOT-553 makes this device fit most tight designs and spaces. The nl17sv16xv5t2g is composed of three stages; including a buffered output which provides high noise immunity and stable output. The nl17sv16xv5t2g provides protection when voltages up to 3.6 V are applied.

Parametrics

nl17sv16xv5t2g absolute maximum ratings: (1)VCC DC Supply Voltage: -0.5 to +4.6 V; (2)VI DC Input Voltage: -0.5 to +4.6 V; (3)VO DC Output Voltage: -0.5 to VCC + 0.5 V; (4)IIK DC Input Diode Current VIN < 0 V: -50mA; (5)IOK DC Output Diode Current: VOUT < 0 V -50mA, VOUT >VCC +50mA; (6)IO DC Output Sink Current: ±50 mA; (7)ICC DC Supply Current per Supply Pin: ±50 mA; (8)IGND DC Ground Current per Ground Pin: ±50 mA; (9)TSTG Storage Temperature Range: -65 to +150℃; (10)TL Lead Temperature, 1.0 mm from Case for 10 seconds: 260℃; (11)TJ Junction Temperature Under Bias: +150℃; (12)JA Thermal Resistance: 250 ℃/W; (13)PD Power Dissipation in Still Air at 85℃: 250 mW; (14)FR Flammability Rating Oxygen index: 28 to 34: UL 94 V.0 @ 0125 in; (15)VESD ESD Withstand Voltage: Human Body Model 2000 V, Machine Model 300 V.

Features

nl17sv16xv5t2g features: (1)Extremely High Speed: 1.5 ns (Typ) at VCC = 3.3 V; (2)Designed for 0.9 V to 3.6 V Operation; (3)Overvoltage Tolerance (OVT) Input Permits Logic Translation; (4)Balanced ±24 mA Output Drive @ 3.3 Volts; (5)Near Zero Static Supply Current; (6)Ultra-Tiny SOT-553 5 Pin Package; (7) Pb-Free and RoHS Compliant.

Diagrams

nl17sv16xv5t2g package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NL17SV16XV5T2G
NL17SV16XV5T2G
ON Semiconductor
Buffers & Line Drivers LOGIC ULTRA L/VOL
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.16
100-500: $0.14
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NL177C2A
NL177C2A

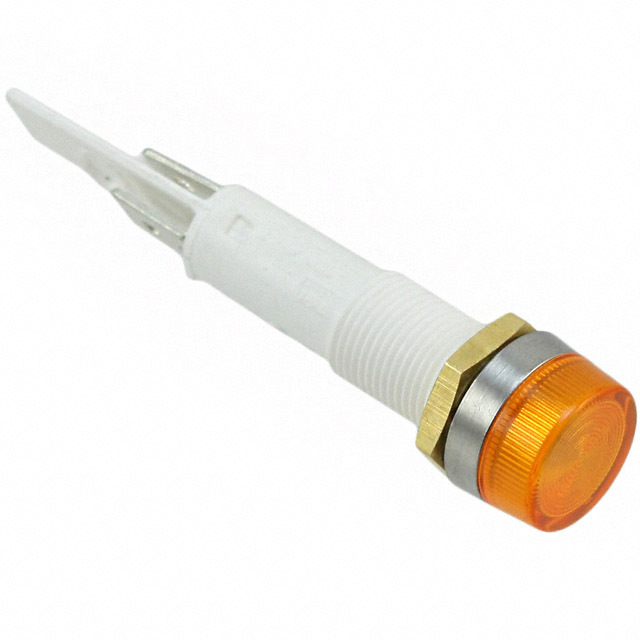

LAMP NEON PNL MNT 125V AMBER
