PA12A

pa12a, power operational amplifier, TO-3, 100V, 15A, 125W, Apex Microtechnology Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: PA12A

Brand:: Apex Microtechnology Corporation - Apex | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:PA12A
US $2.30 - 2.50
PA12A(0016) Brand new and orginal

US $1.00 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

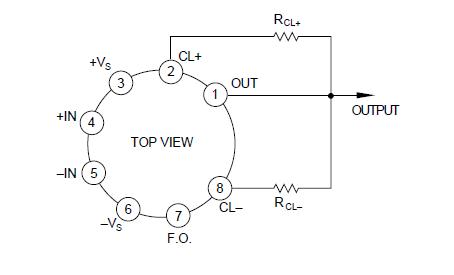

The pa12a is a state of the art high voltage, very high output current operational amplifier designed to drive resistive, inductive and capacitive loads. For optimum linearity, especially at low levels, the output stage is biased for class A/B operation using a thermistor compensated base-emitter voltage multiplier circuit. The safe operating area (SOA) can be observed for all operating conditions by selection of user programmable current limiting resistors. For continuous operation under load, a heatsink of proper rating is recommended. This hybrid integrated circuit utilizes thick film (cermet) resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. The use of compressible isolation washers voids the warranty.

Parametrics

pa12a absolute maximum ratings: (1)supply voltage, +Vs to –Vs: 100V; (2)output current, within SOA: 15A; (3)power dissipation, internal: 125W; (4)input voltage, differential: ±VS –3V; (5)temperature, pin solder -10s: 300℃; (6)temperature, junction: 200℃; (7)temperature range, storage: –65 to +150℃; (8)operating temperature range, case: –55 to +125℃.

Features

pa12a features: (1)low thermal resistance: 1.4℃/W; (2)current foldover protection; (3)excellent linearity: Class A/B Output; (4)wide supply range: ±10V to ±50V; (5)high output current: Up to ±15A Peak.
