Product Summary

The pa4005 is a high voltage power operational amplifier. Inputs are protected from excessive common mode and differential mode voltages. The safe operating area (SOA) has no second breakdown limitations. External compensation provides the user flexibility in choosing optimum gain and bandwidth for the application. The pa4005 is packaged in Apex’s 7 LEAD TO220 package. The metal back of the package is tied to –Vs. The 15 mil minimum spacing of the TO220 package is adequate to stand-off the 250V rating of the PA40. The user must insure that a minimum of 11 mils spacing is maintained between pins for the circuit board artwork. If spacing is less than 11 mils, the voltage must be derated.

Parametrics

pa4005 absolute maximum ratings: (1)supply voltage, +VS to –VS: 250V; (2)output current, continuous within SOA: 60 mA; (3)output current, peak: 120 mA; (4)power dissipation, continuous @ TC = 25°C: 14W; (5)input voltage, differential: ±16 V; (6)temperature, pin solder – 10 sec: 220℃; (7)temperature, junction: 150℃; (8)temperature, storage: –65 to +150℃; (9)temperature range, powered (case): –40 to +125℃.

Features

pa4005 features: (1)monolithic mos technology; (2)low cost; (3)high voltage operation-250v; (4)low quiescent current-2ma; (5)no second breakdown; (6)high output current-120 ma peak.

Diagrams

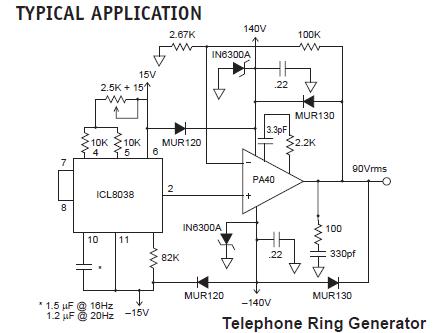

pa4005 block diagram
