Product Summary

The pac007a is a P/Active 1% Tolerance Dual Thevenin Termination Network. High speed logic devices of the pac007a like HSTL (High Speed Transceiver Logic) demand unique, high speed bus terminations. The applications of the pac007a include HSTL termination, Thévenin termination, ECL, TTL termination.

Parametrics

pac007a absolute maximum ratings: (1)Absolute Tolerance (R1 & R2): ±1%; (2)TCR: ±100ppm; (3)Operating Temperature Range: 0 ℃ to 70 ℃; (4)Power Rating/Resistor: 100mW; (5)Crosstalk (see Test Circuit): 30mV TYP; (6)Package: 24 Pin QSOP.

Features

pac007a features: (1)Minimal ground bounce, crosstalk; (2)Stable 1% absolute tolerance elements; (3)16 terminating lines per QSOP package; (4)Saves board space and reduces assembly cost.

Diagrams

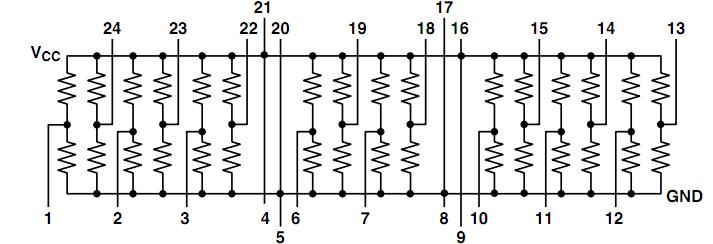

pac007a block diagram
