Product Summary

The ps21246-ep is a Ampere DIP Intelligent Power Module. DIP and mini-DIP IPMs are intelligent power modules that integrate power devices, drivers, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motors. Use of 4th generation IGBTs, DIP packaging, and application specific HVICs allow the designer to reduce inverter size and overall design time.

Parametrics

ps21246-ep absolute maximum ratings: (1)Power Device Junction Temperature: -20 to 150°C; (2)Storage Temperature: -40 to 125°C; (3)Case Operating Temperature: -20 to 100°C; (4)Mounting Torque, M4 Mounting Screws: 13 in-lb; (5)Module Weight (Typical): 54 Grams; (6)Heatsink Flatness: -50 to 100μm; (7)Self-protection Supply Voltage Limit: 400Volts.

Features

ps21246-ep features: (1)Ultra Compact Transfer Mold Package; (2)Including Drive and Protection ICs (low and high voltage drive ICs); (3)Low and High Speed Types; (4)All Mitsubishi DIP and Mini-DIP-IPMs have lead-free terminals ; (5)From January 2006 onwards, all DIP and Mini-DIP-IPMs will be supplied with completely lead-free technology.

Diagrams

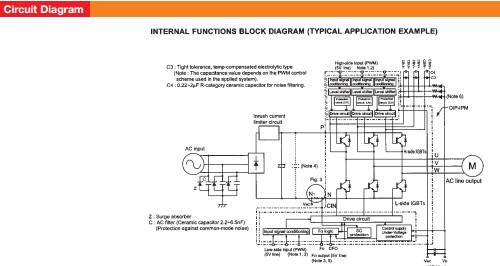

ps21246-ep circuit diagrams
