Product Summary

The rc0603fr-071k5 is a specification describe RC0603 series chip resistor with lead-free terminations made by thick film process. It is ideal for: all general purpose application.



Parametrics

rc0603fr-071k5 absolute maximum ratings: (1)Operating Temperature Range: –55 °C to +155 °C; (2)Maximum Working Voltage: 50 V; (3)Maximum Overload Voltage: 100 V; (4)Dielectric Withstanding Voltage: 100 V; (5)Resistance Range: 1% (E24/E96)1 Ω to 10 MΩ; (6)Temperature Coefficient: 10 MΩ < R ≤ 22 MΩ ±200 ppm/°C; (7)Jumper Criteria Maximum Current: 2.0 A.

Features

rc0603fr-071k5 features: (1)products with lead free terminations meet rohs requirements; (2)pb-glass contained in electrodes, resistor element and glass are exempted by rohs; (3)reducing environmentally hazardous wastes; (4)high component and equipment reliability; (5)saving of pcb space; (6)none forbidden-materials used in products/production; (7)halogen free epoxy.

Diagrams

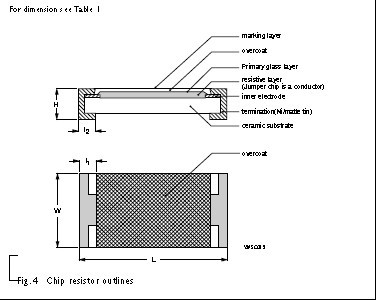

rc0603fr-071k5 pin connection
