Product Summary

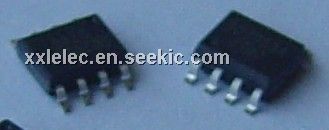

The rtq045n03 is a Transistor. The applications of the rtq045n03 include Power switching, DC / DC converter.
Parametrics
rtq045n03 absolute maximum ratings: (1)Drain-source voltage, VDSS: 30 V; (2)Gate-source voltage, VGSS: 12 V; (3)Drain current Continuous Pulsed, ID: ±4.5 A; (4)Total power dissipation (TC=25 ℃), PD: 1.25 W; (5)Channel temperature, Tch: 150 ℃; (6)Storage temperature, Tstg: -55 to 150 ℃.
Features

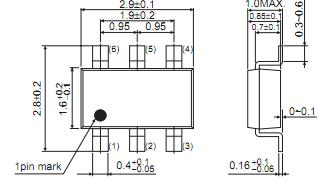

rtq045n03 features: (1)Low on-resistance; (2)Built-in G-S Protection Diode; (3)Small and Surface Mount Package (TSMT6).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RTQ045N03 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
RTQ045N03TR |
ROHM Semiconductor |
MOSFET N-CH 30V 4.5A TSMT6 |
Data Sheet |
|
|
||||||||||||
