Product Summary
The sjep170r550 is a lcd module.
Parametrics
sjep170r550 absolute maximum ratings: (1)logic circuit supply voltage vdd-vss: -0.3 to 7.0 V; (2)lcd driving voltage vdd-vo: -0.3 to 10.0 V; (3)input voltage vi: -0.3 to VDD+0.3V; (4)normal temp type operating temp top: -20 to 70°C; (5)extended temp type operating temp top-20 to 70°C.
Features
sjep170r550 features: (1)Display format : 16 characters × 2 lines; (2)Construction : HTN/STN LCD panel, Bezel, Zebra and PCB; (3)Optional Array LED or EL back-light, white edge LED; (4)Controller : KS0066U or Equivalent.; (5)5V single power input. (Special request for 3.3V driving, built-in DC/DC converter.); (6)Normal / Extended temperature type.; (7)Excellent LC : VOP maintains at 5V for whole temp. range, no need extra temp. compensation circuit .

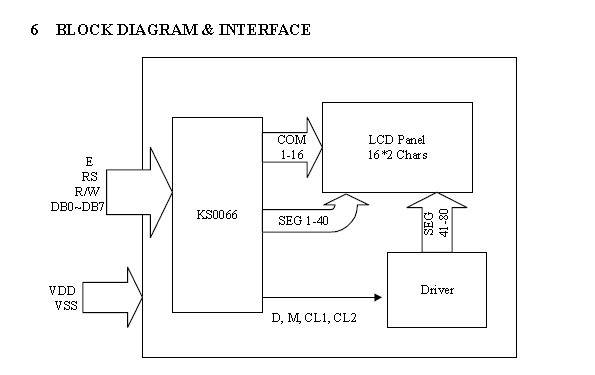

Diagrams
