Product Summary

The skkt330-16e is a Thyristor / Diode Module. The applications of the skkt330-16e include DC motor control, Temperature control, Professional light dimming.

Parametrics

skkt330-16e absolute maximum ratings: (1)ITAV: 305 A; (2)ID: 520/650 A; (3)IRMS: 585/3 × 485 A; (4)ITSM: 9500 A; (5)I2T: 451000 A2S; (6)VT: max.1.4 V; (7)VTTO: max.0.8 V; (8)RT: max.0.6 mΩ; (9)IDD: max.50 mA; (10)TGD: 1 μs; (11)TGR: 2 μs; (12)DI/DT CR: max.250 A/μs; (13)DV/DT CR: max.1000 V/μs; (14)TQ: 50 to 150 μs; (15)IH: 150/500 mA; (16)IL: 300/2000 mA; (17)VGT: min.3 V; (18)IGT: min.200 mA; (19)VGD: max.0.25 V; (20)IGD: max.10 mA; (21)RTH: 0.11/0.055 K/W; (22)TVJ: -40 to +130 ℃; (23)VISOL: 3600/3000 V; (24)MS: 5 to ±15 % Nm; (25)MT: 9 to ±15 % Nm; (26)A: 5 × 9.81 m/s; (27)M: 750 g.

Features

skkt330-16e features: (1)Heat transfer through aluminium nitride ceramic isolated metal baseplate; (2)Precious metal pressure contacts for high reliability; (3)Thyristor with amplifying gete; (4)UL recognized, file no. E 63 532.

Diagrams

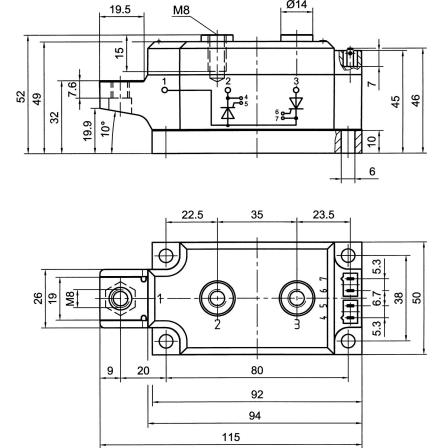

skkt330-16e block diagram
