SSM2404S-REEL

SSM2404S, quad audio switch, 27 V, 20 mA, 20 Hz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: SSM2404S-REEL

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:SSM2404S-REEL
US $2.20 - 2.50
Quantity:

piece

Product Summary

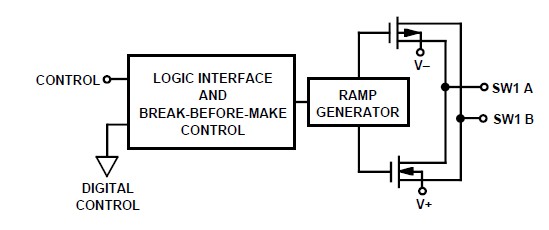

The SSM2404S is a quad audio switch. The SSM2404S integrates four SPST analog switch in a single 20-pin package. Developed specifically for high performance audio applications, distortion and noise are negligible over the full operating range of 20 Hz to 20 kHz. With very low charge injection of 35 pC, “clickless” audio switching is possible, even under the most demanding conditions. Switch control is realized by conventional TTL or CMOS logic. Guaranteed “break-before-make” operation assures that all switches in a large system will open before any switch reaches the ON state.

Parametrics

SSM2404S absolute maximum ratings: (1)Supply voltage. Single supply: +27 V; Dual supply: ±13.5 V; (2)Maximum current through any switch: 20 mA; (3)Operating temperature range: –40°C to +85°C; (4)Storage temperature range: –65°C to +150°C; (5)Junction temperature (TJ): +150°C; (6)Lead temperature (soldering, 60 sec): +300°C; (7)Thermal resistance1. 20-pin plastic DIP (P): qJA = 74, qJC = 32. °C/W; 20-pin SOIC (S): qJA = 90, qJC = 27 °C/W.

Features

SSM2404S features: (1)“CIickless” bilateral audio switching; (2)Four SPST switches in a 20-pin package; (3)Ultralow THD+N: 0.0008% @ 1 kHz (2 V rms,; (4)RL = 100 kV); (5)Low charge injection: 35 pC typ; (6)High off isolation: –100 dB typ (RL = 10 kV @ 1 kHz); (7)Low crosstalk: –94 dB typ (RL = 10 kV @ 1 kHz); (8)Low ON resistance: 28 V typ; (9)Low supply current: 900 mA typ; (10)Single or dual supply operation: +11 V to +24 V or 65.5 V to 612 V; (11)Guaranteed break-before-make; (12)TTL and CMOS compatible logic inputs; (13)Low cost-per-switch.
