ST10F168-Q6

st10f168-q6, 16-bit single-chip CMOS microcontroller, -0.5 to +6.5 V, 100 mA, PQFP, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: ST10F168-Q6

Brand:: STMicroelectronics - ST | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:ST10F168-Q6
US $2.30 - 2.50
Quantity:

piece

Product Summary

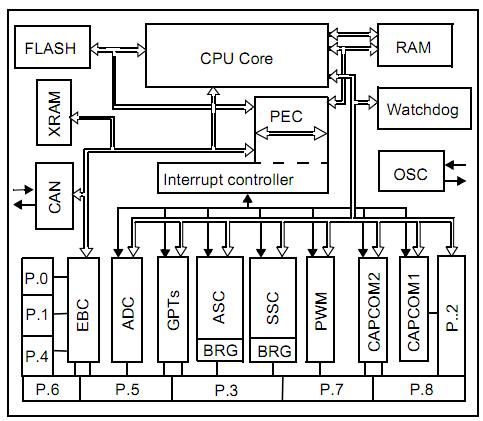

The st10f168-q6 is a 16-bit single-chip CMOS microcontroller. The st10f168-q6 combines high CPU performance (up to 12.5 million instructions per second) with high peripheral functionality and enhanced I/O capabilities. The st10f168-q6 also provides on-chip high-speed Flash memory, on-chip high-speed RAM, and clock generation via PLL.

Parametrics

st10f168-q6 absolute maximum ratings: (1)VDD, Voltage on VDD pins with respect to ground: -0.5 to +6.5 V; (2)VIO, Voltage on any pin with respect to ground: -0.5 to (VDD +0.5) V; (3)IOV, Input Current on any pin during overload condition: -10 to +10 mA; (4)ITOV, Absolute Sum of all input currents during overload condition: |100 mA| mA; (5)Ptot, Power Dissipation1: 1.5 W; (6)TA, Ambient Temperature under bias for - Q6: -40 to +85 ℃; (7)Tstg, Storage Temperature: -65 to +150 ℃.

Features

st10f168-q6 features: (1)high performance cpu 16-bit cpu with 4-stage pipeline; (2)memory organization 256k byte on-chip flash memory; (3)fast and flexible bus programmable external bus charac-te-ristics for different address ranges; (4)interrupt 8-channel peripheral event controller for single cycle, interrupt driven data transfer; (5)timers two multi-functional general purpose timer units with 5 timers; (6)4-channel pwm unit; (7)serial channels synchronous/asynchronous serial channel; (8)a/d converter 16-channel 10-bit; (9)fail-safe protection programmable watchdog timer; (10)on-chip can 2.0b interface; (11)on-chip bootstrap loader; (12)clock generation; (13)up to 111 general purpose i/o lines; (14)idle and power down modes; (15)single voltage supply: 5v ±10%; (16)144-pin pqfp package.
