ST62T03CB6

Product Summary

The ST62T03CB6 is a low cost member of the ST62xx 8-bit HCMOS family of microcontrollers, which is targeted at low to medium complexity applications. It is based on a building block approach: a common core is surrounded by a number of on-chip peripherals. The ST62T03CB6 may be used during the development phase for the target device, as well as the respective ST6200C, 01C and 03C ROM devices. OTP and EPROM devices are functionally identical. OTP devices offer all the advantages of user programmability at low cost, which make them the ideal choice in a wide range of applications where frequent code changes, multiple code versions or last minute programmability are required. The ROM based versions offer the same functionality, selecting the options defined in the programmable option bytes of the OTP/EPROM versions in the ROM option list. The ST62T03CB6 is the Factory Advanced Service Technique ROM (FASTROM) versions of ST62T00C, T01 and T03C OTP devices. It offers the same functionality as OTP devices, but it does not have to be programmed by the customer. The ST62T03CB6 features a Timer comprising an 8-bit counter with a 7-bit programmable prescaler, an 8-bit A/D Converter with 4 analog inputs (depending on device) and a Digital Watchdog timer, making them well suited for a wide range of automotive, appliance and industrial applications.

Parametrics

ST62T03CB6 absolute maximum ratings: (1)VESD(HBM) Electro-static discharge voltage (Human Body Model); (2)TA=+25℃: 2000 V; (3)VESD(MM) Electro-static discharge voltage (Machine Model) TA=+25℃: 200V.

Features

ST62T03CB6 features: (1)1K or 2K bytes Program memory (OTP, EPROM, FASTROM or ROM) with read-out protection; (2)64 bytes RAM; (3)Enhanced reset system; (4)Low voltage detector (LVD) for safe Reset; (5)Clock sources: crystal/ceramic resonator or RC network, external clock, backup oscillator (LFAO); (6)Oscillator safeguard (OSG); (7)2 Power saving modes: Wait and Stop; (8)4 interrupt vectors plus NMI and RESET; (9)9 external interrupt lines (on 2 vectors); (10)9 multifunctional bidirectional I/O lines; (11)4 alternate function lines; (12)3 high sink outputs (20mA); (13)Configurable watchdog timer; (14)8-bit timer/counter with a 7-bit prescaler; (15)8-bit data manipulation; (16)40 basic instructions; (17)9 addressing modes; (18)Bit manipulation.

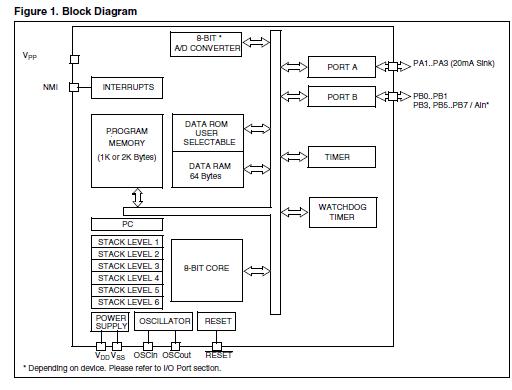

Diagrams
