Product Summary

The st-1kla is a high-sensiivity silicon phototransistor mounted in durable, hermetically sealed TO-18 metal can which provide years of reliable performance, even under demanding conditions such as use outdoors. Applications of the st-1kla are (1)Smoke detector; (2)Optical switches; (3)Optical detectors; (4)Infrared sensors.

Parametrics

st-1kla absolute maximum ratings: (1)C-E Voltage: 40V; (2)E-C Voltage: 4V; (3)Collector current IC: 50mA; (4)Collector power dissipation Pc: 150mW; (5)Operating Temperature: -35 to 125°C; (6)Storage Temperature: -50 to 150°C; (7)Soldering temperature: 260°C.

Features

st-1kla features: (1)Durable; (2)High reliability in demending environments; (3)Two leads.

Diagrams

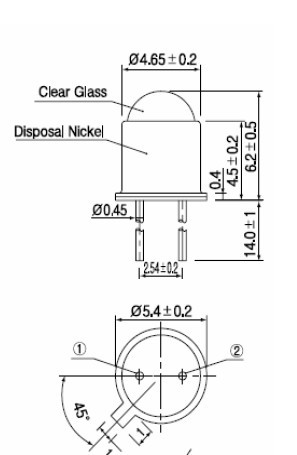

st-1kla pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ST-1KLA
ST-1KLA
Other

Data Sheet
Negotiable
