Product Summary
The th7804acc is a Linear Charged Couple Device (CCD) Image Sensor 1024 Pixel.
Parametrics
th7804acc absolute maximum ratings: (1)Storage Temperature: -55°C to +150°C; (2)Operating Temperature: 0°C to +70°C; (3)Thermal Cycling: 15°C/mn; (4)Maximum Voltage: Pins: 2, 4, 8,12,15,16,18,19, 22, 24: -0.3V to +18V; Pins: 9,10,11,17: -0.3V to +18V; Pin: 13: 0V .
Features
th7804acc features: (1)Pixel Size: 13 μm x 13 μm (13 μm pitch); (2)High Data Output Rate: 20 MHz typ; (3)High Responsivity and Resolution over a Wide Spectral Range: from Blue (400 nm)up; (4)to Near Infrared (1100 nm); (5)Improved Dark Signal and Photo Response Uniformity; (6)Low Temporal Noise and High Dynamic Range: Over 6000/1; (7)Ease and Flexibility of Operation: Only two External Basic Drive Clocks; Internal or External Sample and Reset Clocks; (8)24-lead DIL Packag.

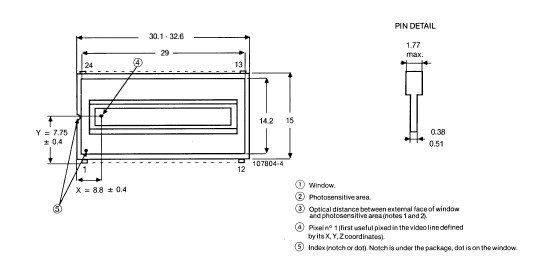

Diagrams
