Product Summary

The thb16j15a is a chip led device.



Parametrics

thb16j15a absolute maximum ratings: (1)Power Dissipation PD: 64 mW; (2)Forward Current IF: 20 mA; (3)Peak Forward Current IFM *1: 50 mA; (4)Reverse Voltage VR: 5 V; (5)Operating Temperature Topr: -30 to 85 ℃; (6)Storage Temperature Tstg: -40 to 100 ℃.

Features

thb16j15a features: (1)Package : 1.6×0.8×0.35mm; (2)Untinted, Diffused flat mold; (3)Wavelength : 469nM .

Diagrams

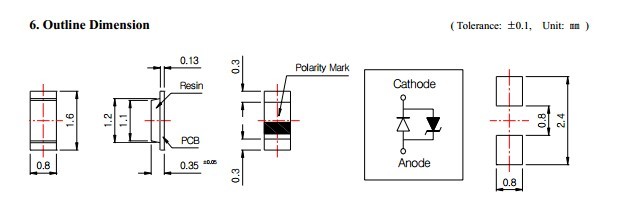

thb16j15a pin connection
