Product Summary
The tim7785-8ul is a microwave power GaAs FET.
Parametrics
tim7785-8ul absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V ; (3)Drain Current IDS: 7.0 A ; (4)Total Power Dissipation (Tc= 25 °C) PT: 37.5W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim7785-8ul features: (1)high power; (2)high gain ; (3)broad band internally matched; (4)hermetically sealed package.

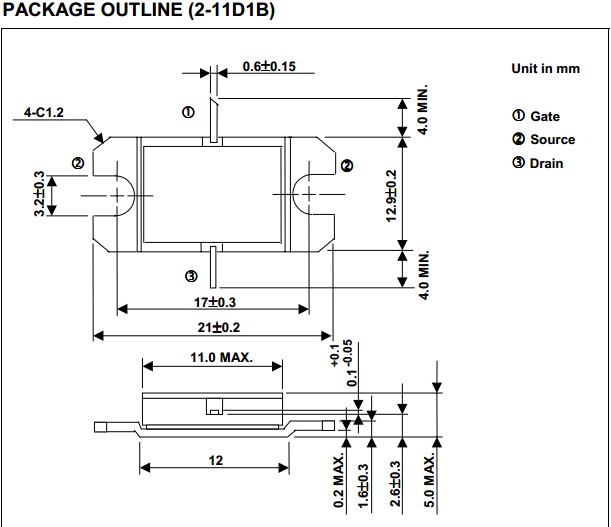

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM7785-8UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
