Product Summary

The tm1624 is an npn epitaxial planar transistor.



Parametrics

tm1624 absolute maximum ratings: (1)Junction Temperature Tj: +150°C; (2)Storage Temperature Tstg: -55 to +150°C; (3)Collector to Base Voltage VCBO: 60 V; (4)Collector to Emitter Voltage VCEO: 50 V; (5)Emitter to Base Voltage VEBO: 6 V; (6)Collector Current (DC)IC: 3 A; (7)Collector Current (Pulse)(Note1)ICP: 6 A; (8)Total Power Dissipation PD: 0.5 W.

Features

tm1624 features: (1)Adoption of FBET, MBIT processes; (2)Low collector-to-emitter saturation voltage; (3)Fast switching speed; (4)Large current capacity and wide ASO.

Diagrams

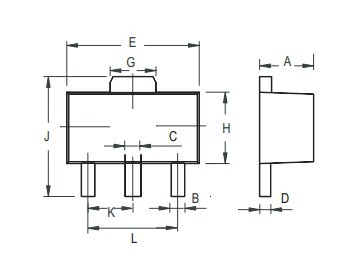

tm1624 pin connection
