Product Summary
The tms9980anl is a single-chip 16-bit central processing unit(CPU) which has an 8-bit data bus, on-chip clock, and is packaged in a 40-pin package. the instruction set of the tms9980anl includes the capabilities offered by full minicomputers and is exactly the same as the 9900’s. The unique memory-to-memory architecture of the tms9980anl features multiple register files, resident in memory, which allow faster response to interrupts and increased programming flexibility. The separate bus structure of the tms9980anl simplifies the system design effort. Texas instruments provides a compatible set of MOS and TTL memory and logic function circuits to be used with a tms9980anl system.
Parametrics
tms9980anl absolute maximum ratings: (1)Supply voltage, VCC: -0.3 to 15 V; (2)Supply voltage, VDD: -0.3 to 15 V; (3)Supply voltage, VBB: -5.25 to 0 V; (4)All input voltages: -0.3 to 15 V; (5)Output voltage: -2 to 7 V; (6)Continuous power dissipation: 1.4 W; (7)Operating free-air temperature range: 0 to 70 ℃; (8)Storage temperature range: -55 to 150 ℃.
Features
tms9980anl features: (1)16-bit instruction word; (2)Full minicomputer instruction set capability including multiply and divide; (3)Up to 16384 bytes of memory; (4)8-bit memory data bus; (5)advanced memory, I/O, and interrupt-bus structures; (6)16 general registers; (7)4 prioritized interrupts; (8)Programmed and DMA I/O capability; (9)On-chip 4-phase clock generator; (10)40-pin package; (11)N-channel silicon-gate technology.

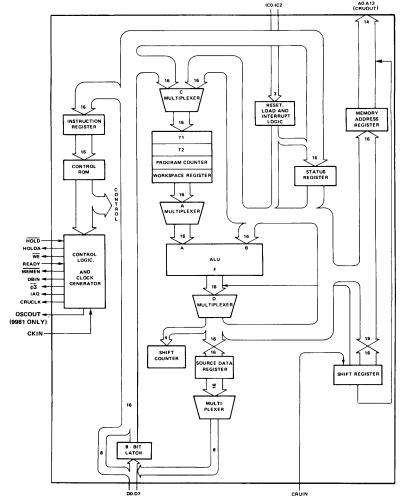

Diagrams
