Product Summary

The tps2500drcr is an integrated usb power switch with boost converter. The tps2500drcr provides an integrated solution to meet USB 5-V power requirements from a 1.8-V to 5.25-V input supply. The features include a Hi-Speed USB compliant power output, output switch enable, current limit, and overcurrent fault reporting. The 1.8-V to 5.25-V input can be supplied by sources including dc/dc regulated supplies (e.g., 3.3 V), or batteries such as single-cell Li+ or three-cell NiCd, NiMH, or alkaline. The USB power-switch current limit is programmable via an external resistor from as low as 130 mA to as high as 1400 mA (typical). Two standard USB ports can be supported from a single tps2500drcr at the 1400-mA setting.

Parametrics

tps2500drcr absolute maximum ratings: (1)Input voltage range on SW, AUX, IN, USB, ENUSB, EN, FAULT, ILIM : –0.3 to 7 V; (2)FAULT sink current: 25 mA; (3)ILIM source current: 1 mA; (4)TJ Junction temperature range: –40 to 150°C; (5)ESD – HBM: 2 kV; (6)ESD – CDM: 500 V.

Features

tps2500drcr features: (1)integrated synchronous boost converter and usb current-limit power switch; (2)light-load, high-efficiency eco-mode control scheme (tps2500) or constant frequency; (3)1.8-v to 5.25-v input voltage (2.2-v minimum start-up voltage); (4)adjustable usb current limit; (5)accurate 20% current limit at 1.4-a setting; (6)powers up to two standard usb ports; (7)auxiliary 5.1-v output; (8)minimal external components required; (9)Fast Overcurrent-Response Time – 5 μs typical; (10)small 3-mm × 3-mm × 0.9-mm SON-10 package; (11)15-kV / 8-kV System-Level ESD capable.

Diagrams

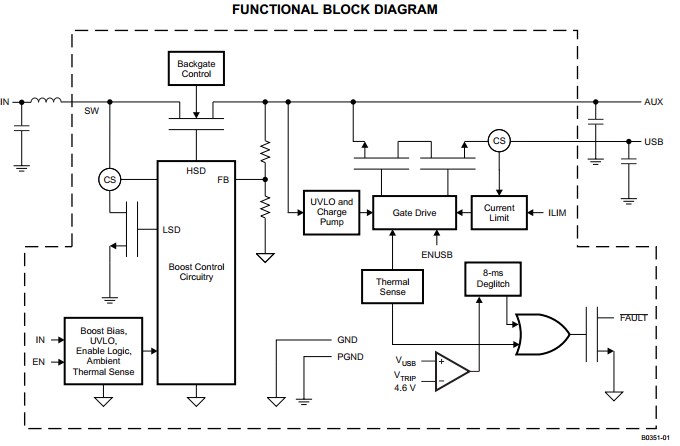

tps2500drcr functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS2500DRCR
TPS2500DRCR
Texas Instruments
Power Switch ICs - USB Integr USB Pwr Sw w/ Boost Converter
Data Sheet
0-2230: $0.97
2230-3000: $0.94
3000-6000: $0.90
